#include <src/ckb/kbanim.h>

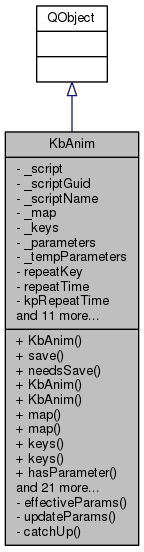

Inheritance diagram for KbAnim:

Collaboration diagram for KbAnim:

Public Types
enum	Mode { Normal, Add, Subtract, Multiply, Divide }

Public Member Functions
	KbAnim (QObject *parent, const KeyMap &map, const QUuid id, CkbSettings &settings)

void	save (CkbSettings &settings)

bool	needsSave () const

	KbAnim (QObject parent, const KeyMap &map, const QString &name, const QStringList &keys, const AnimScript script)

	KbAnim (QObject *parent, const KeyMap &map, const KbAnim &other)

const KeyMap &	map ()

void	map (const KeyMap &newMap)

const QStringList &	keys ()

void	keys (const QStringList &newKeys)

bool	hasParameter (const QString &name) const

QVariant	parameter (const QString &name) const

void	parameter (const QString &name, const QVariant &value)

void	commitParams ()

void	resetParams ()

void	reInit ()

void	trigger (quint64 timestamp, bool ignoreParameter=false)

void	keypress (const QString &key, bool pressed, quint64 timestamp)

void	stop ()

bool	isActive () const

bool	isRunning () const

void	blend (ColorMap &animMap, quint64 timestamp)

const QUuid &	guid () const

void	newId ()

const QString &	name () const

void	name (const QString &newName)

float	opacity () const

void	opacity (float newOpacity)

Mode	mode () const

void	mode (Mode newMode)

const AnimScript *	script () const

const QString &	scriptName () const

Private Member Functions
QMap< QString, QVariant >	effectiveParams ()

void	updateParams ()

void	catchUp (quint64 timestamp)

Private Attributes
AnimScript *	_script

QUuid	_scriptGuid

QString	_scriptName

KeyMap	_map

QStringList	_keys

QMap< QString, QVariant >	_parameters

QMap< QString, QVariant >	_tempParameters

QString	repeatKey

quint64	repeatTime

quint64	kpRepeatTime

quint64	stopTime

quint64	kpStopTime

int	repeatMsec

int	kpRepeatMsec

QUuid	_guid

QString	_name

float	_opacity

Mode	_mode

bool	_isActive

bool	_isActiveKp

bool	_needsSave

Detailed Description

Definition at line 11 of file kbanim.h.

Member Enumeration Documentation

enum KbAnim::Mode

Enumerator
Normal
Add
Subtract
Multiply
Divide

Definition at line 17 of file kbanim.h.

               {
         Normal,
         Add,
         Subtract,
         Multiply,
         Divide
     };

Constructor & Destructor Documentation

KbAnim::KbAnim	(	QObject *	parent,
		const KeyMap &	map,
		const QUuid	id,
		CkbSettings &	settings
	)

Definition at line 8 of file kbanim.cpp.

References _guid, _keys, _map, _mode, _name, _opacity, _parameters, _script, _scriptGuid, _scriptName, CkbSettings::childKeys(), AnimScript::copy(), AnimScript::Param::defaultValue, KeyMap::fromStorage(), AnimScript::Param::INVALID, AnimScript::Param::LABEL, AnimScript::Param::name, AnimScript::name(), name(), Normal, AnimScript::param(), AnimScript::paramIterator(), reInit(), AnimScript::Param::type, and CkbSettings::value().

                                                                                         :
     QObject(parent), _script(0), _map(map),
     repeatTime(0), kpRepeatTime(0), stopTime(0), kpStopTime(0), repeatMsec(0), kpRepeatMsec(0),
     _guid(id), _isActive(false), _isActiveKp(false), _needsSave(false)
 {
     SGroup group(settings, _guid.toString().toUpper());
     _keys = settings.value("Keys").toStringList();
     // Convert key list from storage names if needed
     if(!settings.value("UseRealNames").toBool()){
         QMutableListIterator<QString> i(_keys);
         while(i.hasNext()){
             i.next();
             QString& key = i.value();
             key = _map.fromStorage(key);
         }
     }
     _name = settings.value("Name").toString().trimmed();
     _opacity = settings.value("Opacity").toString().toDouble();
     if(_opacity < 0.)
         _opacity = 0.;
     else if(_opacity > 1.)
         _opacity = 1.;
     bool modeOk = false;
     _mode = (Mode)metaObject()->enumerator(metaObject()->indexOfEnumerator("Mode")).keysToValue(settings.value("BlendMode").toString().toLatin1(), &modeOk);
     if(!modeOk)
         _mode = Normal;
     _scriptName = settings.value("ScriptName").toString().trimmed();
     _scriptGuid = settings.value("ScriptGuid").toString();
     {
         SGroup group(settings, "Parameters");
         foreach(const QString& param, settings.childKeys())
             _parameters[param.toLower()] = settings.value(param);
     }

     if(!_scriptGuid.isNull()){
         _script = AnimScript::copy(this, _scriptGuid);
         if(_script){
             // Remove nonexistant parameters
             foreach(const QString& name, _parameters.keys()){
                 AnimScript::Param param = _script->param(name);
                 if(param.type == AnimScript::Param::INVALID || param.type == AnimScript::Param::LABEL)
                     _parameters.remove(name);
             }
             // Add defaults for unset parameters
             QListIterator<AnimScript::Param> i = _script->paramIterator();
             while(i.hasNext()){
                 AnimScript::Param param = i.next();
                 if(!_parameters.contains(param.name) && param.type != AnimScript::Param::LABEL)
                     _parameters[param.name] = param.defaultValue;
             }
             _scriptName = _script->name();
             reInit();
         }
     }
 }

Here is the call graph for this function:

KbAnim::KbAnim	(	QObject *	parent,
		const KeyMap &	map,
		const QString &	name,
		const QStringList &	keys,
		const AnimScript *	script
	)

Definition at line 84 of file kbanim.cpp.

References _parameters, _script, _scriptGuid, _scriptName, AnimScript::Param::defaultValue, AnimScript::guid(), AnimScript::Param::LABEL, AnimScript::Param::name, AnimScript::name(), AnimScript::paramIterator(), reInit(), and AnimScript::Param::type.

                                                                                                                          :
     QObject(parent),
     _script(AnimScript::copy(this, script->guid())), _map(map), _keys(keys),
     repeatTime(0), kpRepeatTime(0), stopTime(0), kpStopTime(0), repeatMsec(0), kpRepeatMsec(0),
     _guid(QUuid::createUuid()), _name(name), _opacity(1.), _mode(Normal), _isActive(false), _isActiveKp(false), _needsSave(true)
 {
     if(_script){
         // Set default parameters
         QListIterator<AnimScript::Param> i = _script->paramIterator();
         while(i.hasNext()){
             AnimScript::Param param = i.next();
             if(param.type != AnimScript::Param::LABEL)
                 _parameters[param.name] = param.defaultValue;
         }
         _scriptGuid = script->guid();
         _scriptName = script->name();
         reInit();
     }
 }

Here is the call graph for this function:

KbAnim::KbAnim	(	QObject *	parent,
		const KeyMap &	map,
		const KbAnim &	other
	)

Definition at line 104 of file kbanim.cpp.

References reInit().

                                                                       :
     QObject(parent),
     _script(AnimScript::copy(this, other.script()->guid())), _scriptGuid(_script->guid()), _scriptName(_script->name()),
     _map(map), _keys(other._keys), _parameters(other._parameters),
     repeatTime(0), kpRepeatTime(0), stopTime(0), kpStopTime(0), repeatMsec(0), kpRepeatMsec(0),
     _guid(other._guid), _name(other._name), _opacity(other._opacity), _mode(other._mode), _isActive(false), _isActiveKp(false), _needsSave(true)
 {
     reInit();
 }

Here is the call graph for this function:

Member Function Documentation

void KbAnim::blend	(	ColorMap &	animMap,
		quint64	timestamp
	)

Definition at line 365 of file kbanim.cpp.

References _mode, _opacity, _script, catchUp(), ColorMap::colors(), AnimScript::colors(), ColorMap::count(), AnimScript::frame(), and functions.

Referenced by KbLight::frameUpdate().

                                                       {
     if(!_script)
         return;

     // Fetch the next frame from the script
     catchUp(timestamp);
     _script->frame(timestamp);

     // Blend the script's map with the current map
     int blendMode = (int)_mode;
     blendFunc blend = functions[blendMode];
     float fOpacity = _opacity / 255.f;  // save some math by pre-dividing the 255 for qAlpha

     const ColorMap& scriptMap = _script->colors();
     int count = animMap.count();
     if(scriptMap.count() != count){
         qDebug() << "Script map didn't match base map (" << count << " vs " << scriptMap.count() << "). This should never happen.";
         return;
     }
     QRgb* background = animMap.colors();
     const QRgb* foreground = scriptMap.colors();
     for(int i = 0; i < count; i++){
         // Mix the colors in with the color map according to blend mode and alpha
         QRgb& bg = background[i];
         QRgb fg = foreground[i];
         int alpha = qAlpha(fg);
         if(alpha == 0)
             continue;
         if(blendMode == 0){
             // Blend: normal
             // This is the most common use case and it requires much less arithmetic
             if(alpha == 255){
                 bg = fg;
             } else {
                 float r = qRed(bg), g = qGreen(bg), b = qBlue(bg);
                 float a = alpha * fOpacity;
                 r = r * (1.f - a) + qRed(fg) * a;
                 g = g * (1.f - a) + qGreen(fg) * a;
                 b = b * (1.f - a) + qBlue(fg) * a;
                 bg = qRgb(round(r), round(g), round(b));
             }
         } else {
             // Use blend function
             float r = qRed(bg) / 255.f, g = qGreen(bg) / 255.f, b = qBlue(bg) / 255.f;
             float a = alpha * fOpacity;
             r = r * (1.f - a) + blend(r, qRed(fg) / 255.f) * a;
             g = g * (1.f - a) + blend(g, qGreen(fg) / 255.f) * a;
             b = b * (1.f - a) + blend(b, qBlue(fg) / 255.f) * a;
             bg = qRgb(round(r * 255.f), round(g * 255.f), round(b * 255.f));
         }
     }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::catchUp ( quint64 timestamp )

private

Definition at line 166 of file kbanim.cpp.

References _isActive, _isActiveKp, _script, effectiveParams(), AnimScript::end(), AnimScript::keypress(), kpRepeatMsec, kpRepeatTime, kpStopTime, repeatKey, repeatMsec, repeatTime, AnimScript::retrigger(), and stopTime.

Referenced by blend(), keypress(), and trigger().

                                      {
     QMap<QString, QVariant> parameters = effectiveParams();
     // Stop the animation if its time has run out
     if(stopTime != 0 && timestamp >= stopTime){
         repeatMsec = repeatTime = 0;
         if(!parameters.contains("repeat")){
             // If repeats aren't allowed, stop the animation entirely
             _script->end();
             _isActive = false;
             return;
         } else
             // Otherwise, simply stop repeating
             stopTime = 0;
     }
     if(kpStopTime != 0 && timestamp >= kpStopTime){
         kpRepeatMsec = kpRepeatTime = 0;
         if(!parameters.contains("kprepeat")){
             _script->end();
             _isActiveKp = false;
             return;
         } else
             kpStopTime = 0;
     }

     // Restart (or start, if there was a delay) the animation if its repeat time is up
     while(repeatTime > 0 && timestamp >= repeatTime){
         _script->retrigger(repeatTime);
         if(repeatMsec <= 0){
             repeatTime = 0;
             break;
         }
         repeatTime += repeatMsec;
     }
     while(kpRepeatTime > 0 && timestamp >= kpRepeatTime){
         _script->keypress(repeatKey, 1, kpRepeatTime);
         if(kpRepeatMsec <= 0){
             kpRepeatTime = 0;
             break;
         }
         kpRepeatTime += kpRepeatMsec;
     }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::commitParams ( )

Definition at line 121 of file kbanim.cpp.

References _needsSave, _parameters, _tempParameters, and effectiveParams().

Referenced by KbLight::addAnim(), KbAnimWidget::on_propertyButton_clicked(), and KbLight::previewAnim().

                          {
     _needsSave = true;
     _parameters = effectiveParams();
     _tempParameters.clear();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

QMap< QString, QVariant > KbAnim::effectiveParams ( )

private

Definition at line 138 of file kbanim.cpp.

References _parameters, and _tempParameters.

Referenced by catchUp(), commitParams(), keypress(), reInit(), trigger(), and updateParams().

                                                {
     QMap<QString, QVariant> res = _parameters;
     // Apply all uncommited parameters
     QMapIterator<QString, QVariant> i(_tempParameters);
     while(i.hasNext()){
         i.next();
         res[i.key()] = i .value();
     }
     return res;
 }

Here is the caller graph for this function:

const QUuid& KbAnim::guid ( ) const

inline

Definition at line 71 of file kbanim.h.

References _guid.

Referenced by KbAnimWidget::addAnim(), RebindWidget::applyChanges(), KbLight::findAnim(), KbAnimWidget::on_deleteButton_clicked(), KbAnimWidget::refreshList(), and KbLight::save().

71 { return _guid; }

KbAnim::_guid

QUuid _guid

Definition: kbanim.h:110

Here is the caller graph for this function:

bool KbAnim::hasParameter ( const QString & name ) const

inline

Definition at line 44 of file kbanim.h.

References _parameters.

Referenced by AnimSettingDialog::AnimSettingDialog().

44 { return _parameters.contains(name); }

KbAnim::_parameters

QMap< QString, QVariant > _parameters

Definition: kbanim.h:94

KbAnim::name

const QString & name() const

Definition: kbanim.h:73

Here is the caller graph for this function:

bool KbAnim::isActive ( ) const

inline

Definition at line 63 of file kbanim.h.

References _isActive, and _isActiveKp.

Referenced by KeyAction::keyEvent(), and keypress().

63 { return _isActive || _isActiveKp; }

KbAnim::_isActive

bool _isActive

Definition: kbanim.h:114

KbAnim::_isActiveKp

bool _isActiveKp

Definition: kbanim.h:114

Here is the caller graph for this function:

bool KbAnim::isRunning ( ) const

Definition at line 325 of file kbanim.cpp.

References _script, and AnimScript::hasFrame().

Referenced by KbLight::isStarted().

                              {
     if(!_script)
         return true;    // If the script wasn't loaded, pretend it's running anyway so it won't lock up
     return _script->hasFrame();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::keypress	(	const QString &	key,
		bool	pressed,
		quint64	timestamp
	)

Definition at line 250 of file kbanim.cpp.

References _isActive, _isActiveKp, _script, catchUp(), effectiveParams(), AnimScript::frame(), isActive(), AnimScript::keypress(), kpRepeatMsec, kpRepeatTime, kpStopTime, repeatKey, repeatMsec, repeatTime, stop(), AnimScript::stop(), and stopTime.

Referenced by KbLight::animKeypress().

                                                                         {
     if(!_script)
         return;
     QMap<QString, QVariant> parameters = effectiveParams();
     if(pressed && parameters.value("kpmodestop").toBool()){
         // If stop on key press is enabled, stop mode-wide animation
         catchUp(timestamp);
         _script->stop(timestamp);
         stopTime = repeatTime = repeatMsec = 0;
         _isActive = false;
     } else {
         if(!parameters.value("kptrigger").toBool())
             return;
         catchUp(timestamp);
     }

     if(pressed){
         // Key pressed
         _isActiveKp = true;
         if(parameters.value("kpmode", 0).toInt() == 2 && isActive())
             // If mode is start once and a key has already been pressed, do nothing
             return;
         int delay = round(parameters.value("kpdelay").toDouble() * 1000.);
         if(delay > 0){
             // If delay is enabled, wait to trigger the event
             timestamp += delay;
             kpRepeatTime = timestamp;
         } else
             _script->keypress(key, pressed, timestamp);

         int repeat = round(parameters.value("kprepeat").toDouble() * 1000.);
         if(repeat <= 0){
             // If no repeat allowed, calculate stop time in seconds
             kpRepeatMsec = -1;
             double stop = parameters.value("kpstop").toDouble();
             if(stop <= 0.)
                 kpStopTime = 0;
             else
                 kpStopTime = timestamp + round(stop * 1000.);
         } else {
             // If repeat is allowed, calculate stop time in repetitions
             kpRepeatMsec = repeat;
             if(delay <= 0)
                 kpRepeatTime = timestamp + repeat;
             int stop = parameters.value("kpstop").toInt();
             if(stop < 0)
                 kpStopTime = 0;
             else
                 kpStopTime = timestamp + repeat * (1 + stop);
         }
         repeatKey = key;
     } else {
         // Key released
         _isActiveKp = false;
         _script->keypress(key, pressed, timestamp);
         if(parameters.value("kprelease").toBool())
             // Stop repeating keypress if "Stop on key release" is enabled
             kpStopTime = timestamp;
     }
     _script->frame(timestamp);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

const QStringList& KbAnim::keys ( )

inline

Definition at line 40 of file kbanim.h.

References _keys.

Referenced by KbLight::animKeypress(), KbLightWidget::changeAnim(), KbAnimWidget::on_keyButton_clicked(), and KbAnimWidget::setCurrent().

40 { return _keys; }

KbAnim::_keys

QStringList _keys

Definition: kbanim.h:92

Here is the caller graph for this function:

void KbAnim::keys ( const QStringList & newKeys )

Definition at line 161 of file kbanim.cpp.

References _keys, and reInit().

                                            {
     _keys = newKeys;
     reInit();
 }

Here is the call graph for this function:

const KeyMap& KbAnim::map ( )

inline

Definition at line 37 of file kbanim.h.

References _map.

Referenced by KbLight::map().

37 { return _map; }

KbAnim::_map

KeyMap _map

Definition: kbanim.h:91

Here is the caller graph for this function:

void KbAnim::map ( const KeyMap & newMap )

Definition at line 156 of file kbanim.cpp.

References _map, and reInit().

                                     {
     _map = newMap;
     reInit();
 }

Here is the call graph for this function:

Mode KbAnim::mode ( ) const

inline

Definition at line 77 of file kbanim.h.

References _mode.

Referenced by KbAnimWidget::on_blendBox_activated(), and KbAnimWidget::setCurrent().

77 { return _mode; }

KbAnim::_mode

Mode _mode

Definition: kbanim.h:113

Here is the caller graph for this function:

void KbAnim::mode ( Mode newMode )

inline

Definition at line 78 of file kbanim.h.

References _mode, and _needsSave.

78 { _needsSave = true; _mode = newMode; }

KbAnim::_mode

Mode _mode

Definition: kbanim.h:113

KbAnim::_needsSave

bool _needsSave

Definition: kbanim.h:115

const QString& KbAnim::name ( ) const

inline

Definition at line 73 of file kbanim.h.

References _name.

Referenced by KbAnimWidget::addAnim(), AnimSettingDialog::AnimSettingDialog(), KbAnim(), KbAnimWidget::on_animList_itemChanged(), KbAnimWidget::on_nameBox_textEdited(), parameter(), KbAnimWidget::refreshList(), KbAnimWidget::setCurrent(), and RebindWidget::setSelection().

73 { return _name; }

KbAnim::_name

QString _name

Definition: kbanim.h:111

Here is the caller graph for this function:

void KbAnim::name ( const QString & newName )

inline

Definition at line 74 of file kbanim.h.

References _name, and _needsSave.

74 { _needsSave = true; _name = newName; }

KbAnim::_name

QString _name

Definition: kbanim.h:111

KbAnim::_needsSave

bool _needsSave

Definition: kbanim.h:115

bool KbAnim::needsSave ( ) const

inline

Definition at line 29 of file kbanim.h.

References _needsSave.

Referenced by KbLight::needsSave().

29 { return _needsSave; }

KbAnim::_needsSave

bool _needsSave

Definition: kbanim.h:115

Here is the caller graph for this function:

void KbAnim::newId ( )

inline

Definition at line 72 of file kbanim.h.

References _guid, and _needsSave.

Referenced by KbLight::duplicateAnim(), and KbMode::newId().

72 { _needsSave = true; _guid = QUuid::createUuid(); }

KbAnim::_needsSave

bool _needsSave

Definition: kbanim.h:115

KbAnim::_guid

QUuid _guid

Definition: kbanim.h:110

Here is the caller graph for this function:

float KbAnim::opacity ( ) const

inline

Definition at line 75 of file kbanim.h.

References _opacity.

Referenced by KbAnimWidget::on_opacityBox_valueChanged(), and KbAnimWidget::setCurrent().

75 { return _opacity; }

KbAnim::_opacity

float _opacity

Definition: kbanim.h:112

Here is the caller graph for this function:

void KbAnim::opacity ( float newOpacity )

inline

Definition at line 76 of file kbanim.h.

References _needsSave, and _opacity.

76 { _needsSave = true; _opacity = newOpacity; }

KbAnim::_needsSave

bool _needsSave

Definition: kbanim.h:115

KbAnim::_opacity

float _opacity

Definition: kbanim.h:112

QVariant KbAnim::parameter ( const QString & name ) const

inline

Definition at line 45 of file kbanim.h.

References _parameters.

Referenced by KbLight::addAnim(), AnimSettingDialog::AnimSettingDialog(), KbLight::previewAnim(), and AnimSettingDialog::updateParam().

45 { return _parameters.value(name); }

KbAnim::_parameters

QMap< QString, QVariant > _parameters

Definition: kbanim.h:94

KbAnim::name

const QString & name() const

Definition: kbanim.h:73

Here is the caller graph for this function:

void KbAnim::parameter	(	const QString &	name,
		const QVariant &	value
	)

Definition at line 114 of file kbanim.cpp.

References _script, _tempParameters, AnimScript::hasParam(), name(), and updateParams().

                                                                 {
     if(!_script->hasParam(name))
         return;
     _tempParameters[name] = value;
     updateParams();
 }

Here is the call graph for this function:

void KbAnim::reInit ( )

Definition at line 149 of file kbanim.cpp.

References _isActive, _isActiveKp, _keys, _map, _script, effectiveParams(), AnimScript::init(), and repeatKey.

Referenced by KbAnim(), keys(), map(), KbAnimWidget::on_propertyButton_clicked(), and KbLight::previewAnim().

                    {
     if(_script)
         _script->init(_map, _keys, effectiveParams());
     repeatKey = "";
     _isActive = _isActiveKp = false;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::resetParams ( )

Definition at line 127 of file kbanim.cpp.

References _tempParameters, and updateParams().

Referenced by KbAnimWidget::on_propertyButton_clicked().

                         {
     _tempParameters.clear();
     updateParams();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::save ( CkbSettings & settings )

Definition at line 64 of file kbanim.cpp.

References _guid, _keys, _mode, _name, _needsSave, _opacity, _parameters, _scriptGuid, _scriptName, CkbSettings::beginGroup(), CkbSettings::endGroup(), and CkbSettings::setValue().

Referenced by KbLight::save().

                                       {
     _needsSave = false;
     settings.beginGroup(_guid.toString().toUpper());
     settings.setValue("UseRealNames", true);
     settings.setValue("Keys", _keys);
     settings.setValue("Name", _name);
     settings.setValue("Opacity", QString::number(_opacity));
     settings.setValue("BlendMode", metaObject()->enumerator(metaObject()->indexOfEnumerator("Mode")).valueToKey(_mode));
     settings.setValue("ScriptName", _scriptName);
     settings.setValue("ScriptGuid", _scriptGuid.toString().toUpper());
     settings.beginGroup("Parameters");
     QMapIterator<QString, QVariant> i(_parameters);
     while(i.hasNext()){
         i.next();
         settings.setValue(i.key(), i.value());
     }
     settings.endGroup();
     settings.endGroup();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

const AnimScript* KbAnim::script ( ) const

inline

Definition at line 81 of file kbanim.h.

References _script.

Referenced by AnimSettingDialog::AnimSettingDialog(), KbAnimWidget::setCurrent(), and AnimSettingDialog::updateParam().

81 { return _script; }

KbAnim::_script

AnimScript * _script

Definition: kbanim.h:86

Here is the caller graph for this function:

const QString& KbAnim::scriptName ( ) const

inline

Definition at line 82 of file kbanim.h.

References _scriptName.

Referenced by AnimSettingDialog::AnimSettingDialog(), and KbAnimWidget::setCurrent().

82 { return _scriptName; }

KbAnim::_scriptName

QString _scriptName

Definition: kbanim.h:89

Here is the caller graph for this function:

void KbAnim::stop ( )

Definition at line 312 of file kbanim.cpp.

References _isActive, _isActiveKp, _script, AnimScript::end(), kpRepeatMsec, kpRepeatTime, kpStopTime, repeatKey, repeatMsec, repeatTime, and stopTime.

Referenced by KbLight::addAnim(), KbLight::close(), KbLight::duplicateAnim(), KeyAction::keyEvent(), keypress(), KbLight::restartAnimation(), and trigger().

                  {
     if(_script)
         _script->end();
     repeatTime = 0;
     kpRepeatTime = 0;
     repeatMsec = 0;
     kpRepeatMsec = 0;
     stopTime = 0;
     kpStopTime = 0;
     repeatKey = "";
     _isActive = _isActiveKp = false;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::trigger	(	quint64	timestamp,
		bool	ignoreParameter = `false`
	)

Definition at line 209 of file kbanim.cpp.

References _isActive, _script, catchUp(), effectiveParams(), AnimScript::frame(), repeatMsec, repeatTime, AnimScript::retrigger(), stop(), and stopTime.

Referenced by KbLight::addAnim(), KbLight::duplicateAnim(), KeyAction::keyEvent(), KbLight::open(), KbLight::previewAnim(), and KbLight::restartAnimation().

                                                            {
     if(!_script)
         return;
     QMap<QString, QVariant> parameters = effectiveParams();

     catchUp(timestamp);
     if(parameters.value("trigger").toBool() || ignoreParameter){
         _isActive = true;
         int delay = round(parameters.value("delay").toDouble() * 1000.);
         if(delay > 0){
             // If delay is enabled, wait to trigger the event
             timestamp += delay;
             repeatTime = timestamp;
         } else
             _script->retrigger(timestamp, true);

         int repeat = round(parameters.value("repeat").toDouble() * 1000.);
         if(repeat <= 0){
             // If no repeat allowed, calculate stop time in seconds
             repeatMsec = -1;
             double stop = parameters.value("stop").toDouble();
             if(stop <= 0)
                 stopTime = 0;
             else
                 stopTime = timestamp + round(stop * 1000.);
         } else {
             // If repeat is allowed, calculate stop time in repetitions
             repeatMsec = repeat;
             if(delay <= 0)
                 repeatTime = timestamp + repeat;
             int stop = parameters.value("stop").toInt();
             if(stop < 0)
                 stopTime = 0;
             else
                 stopTime = timestamp + repeat * (1 + stop);
         }
     }
     // Ask the script for a frame even if we didn't do anything here. This way ckb knows the script is responding.
     _script->frame(timestamp);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbAnim::updateParams ( )

private

Definition at line 132 of file kbanim.cpp.

References _script, effectiveParams(), AnimScript::parameters(), and repeatKey.

Referenced by parameter(), and resetParams().

                          {
     if(_script)
         _script->parameters(effectiveParams());
     repeatKey = "";
 }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

QUuid KbAnim::_guid

private

Definition at line 110 of file kbanim.h.

Referenced by guid(), KbAnim(), newId(), and save().

bool KbAnim::_isActive

private

Definition at line 114 of file kbanim.h.

Referenced by catchUp(), isActive(), keypress(), reInit(), stop(), and trigger().

bool KbAnim::_isActiveKp

private

Definition at line 114 of file kbanim.h.

Referenced by catchUp(), isActive(), keypress(), reInit(), and stop().

QStringList KbAnim::_keys

private

Definition at line 92 of file kbanim.h.

Referenced by KbAnim(), keys(), reInit(), and save().

KeyMap KbAnim::_map

private

Definition at line 91 of file kbanim.h.

Referenced by KbAnim(), map(), and reInit().

Mode KbAnim::_mode

private

Definition at line 113 of file kbanim.h.

Referenced by blend(), KbAnim(), mode(), and save().

QString KbAnim::_name

private

Definition at line 111 of file kbanim.h.

Referenced by KbAnim(), name(), and save().

bool KbAnim::_needsSave

private

Definition at line 115 of file kbanim.h.

Referenced by commitParams(), mode(), name(), needsSave(), newId(), opacity(), and save().

float KbAnim::_opacity

private

Definition at line 112 of file kbanim.h.

Referenced by blend(), KbAnim(), opacity(), and save().

QMap<QString, QVariant> KbAnim::_parameters

private

Definition at line 94 of file kbanim.h.

Referenced by commitParams(), effectiveParams(), hasParameter(), KbAnim(), parameter(), and save().

AnimScript* KbAnim::_script

private

Definition at line 86 of file kbanim.h.

Referenced by blend(), catchUp(), isRunning(), KbAnim(), keypress(), parameter(), reInit(), script(), stop(), trigger(), and updateParams().

QUuid KbAnim::_scriptGuid

private

Definition at line 88 of file kbanim.h.

Referenced by KbAnim(), and save().

QString KbAnim::_scriptName

private

Definition at line 89 of file kbanim.h.

Referenced by KbAnim(), save(), and scriptName().

QMap<QString, QVariant> KbAnim::_tempParameters

private

Definition at line 96 of file kbanim.h.

Referenced by commitParams(), effectiveParams(), parameter(), and resetParams().

int KbAnim::kpRepeatMsec

private

Definition at line 106 of file kbanim.h.

Referenced by catchUp(), keypress(), and stop().

quint64 KbAnim::kpRepeatTime

private

Definition at line 105 of file kbanim.h.

Referenced by catchUp(), keypress(), and stop().

quint64 KbAnim::kpStopTime

private

Definition at line 105 of file kbanim.h.

Referenced by catchUp(), keypress(), and stop().

QString KbAnim::repeatKey

private

Definition at line 104 of file kbanim.h.

Referenced by catchUp(), keypress(), reInit(), stop(), and updateParams().

int KbAnim::repeatMsec

private

Definition at line 106 of file kbanim.h.

Referenced by catchUp(), keypress(), stop(), and trigger().

quint64 KbAnim::repeatTime

private

Definition at line 105 of file kbanim.h.

Referenced by catchUp(), keypress(), stop(), and trigger().

quint64 KbAnim::stopTime

private

Definition at line 105 of file kbanim.h.

Referenced by catchUp(), keypress(), stop(), and trigger().

The documentation for this class was generated from the following files:

src/ckb/kbanim.h
src/ckb/kbanim.cpp

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Field Documentation
