KbFirmware Class Reference

#include <src/ckb/kbfirmware.h>

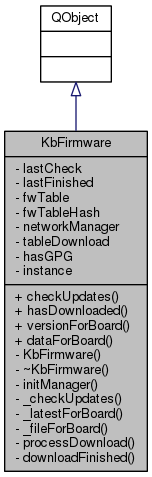

Inheritance diagram for KbFirmware:

Collaboration diagram for KbFirmware:

Data Structures
struct	FW

Signals
void	downloaded ()

Static Public Member Functions
static bool	checkUpdates ()
static bool	hasDownloaded ()
static float	versionForBoard (const QString &features, bool waitForComplete=false)
static QByteArray	dataForBoard (const QString &features)

Private Types
enum	{ UNKNOWN = -1, NO, YES }

Private Slots
void	processDownload (QNetworkReply *reply)
void	downloadFinished ()

Private Member Functions
	KbFirmware ()
	~KbFirmware ()
void	initManager ()
bool	_checkUpdates ()
float	_latestForBoard (const QString &features, bool waitForComplete)
QByteArray	_fileForBoard (const QString &features)

Private Attributes
quint64	lastCheck
quint64	lastFinished
QMap< QString, FW >	fwTable
QByteArray	fwTableHash
QNetworkAccessManager *	networkManager
QNetworkReply *	tableDownload
enum KbFirmware:: { ... }	hasGPG

Static Private Attributes
static KbFirmware	instance

Detailed Description

Definition at line 10 of file kbfirmware.h.

Member Enumeration Documentation

anonymous enum

private

Enumerator
UNKNOWN
NO
YES

Definition at line 53 of file kbfirmware.h.

{ UNKNOWN = -1, NO, YES } hasGPG :2;

Constructor & Destructor Documentation

KbFirmware::KbFirmware ( )

private

Definition at line 14 of file kbfirmware.cpp.

                       :
    lastCheck(0), lastFinished(0), networkManager(0), tableDownload(0), hasGPG(UNKNOWN)
{
}

KbFirmware::~KbFirmware ( )

private

Definition at line 19 of file kbfirmware.cpp.

                       {
    //delete networkManager;
    // ^ This can cause a crash (QT bug?)
}

Member Function Documentation

bool KbFirmware::_checkUpdates ( )

private

Definition at line 30 of file kbfirmware.cpp.

References AUTO_CHECK_TIME, downloadFinished(), initManager(), lastCheck, networkManager, and tableDownload.

Referenced by checkUpdates().

                              {
    initManager();
    quint64 now = QDateTime::currentMSecsSinceEpoch();
    if(now < lastCheck + AUTO_CHECK_TIME)
        return false;
    // First location is for debugging only.
    // tableDownload = networkManager->get(QNetworkRequest(QUrl("https://raw.githubusercontent.com/frickler24/ckb-next/issues-26-Firmware-Incident/FIRMWARE")));
    // This one is the production one.
    tableDownload = networkManager->get(QNetworkRequest(QUrl("https://raw.githubusercontent.com/mattanger/ckb-next/master/FIRMWARE")));
    connect(tableDownload, SIGNAL(finished()), this, SLOT(downloadFinished()));
    lastCheck = now;
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

QByteArray KbFirmware::_fileForBoard ( const QString &  features )

private

Definition at line 183 of file kbfirmware.cpp.

References QuaZip::csInsensitive, KbFirmware::FW::fileName, fwTable, KbFirmware::FW::hash, QuaZip::mdUnzip, networkManager, QuaZip::open(), QuaZipFile::open(), quit(), QuaZip::setCurrentFile(), tableName(), and KbFirmware::FW::url.

Referenced by dataForBoard().

                                                           {
    QString name = tableName(features);
    FW info = fwTable.value(name);
    if(info.hash.isEmpty())
        return "";
    // Download zip from URL. Wait for it to finish.
    QNetworkReply* reply = networkManager->get(QNetworkRequest(QUrl(info.url)));
    QEventLoop loop(this);
    connect(reply, SIGNAL(finished()), &loop, SLOT(quit()));
    loop.exec();
    // Download finished, process data
    if(reply->error() != QNetworkReply::NoError)
        return "";
    QByteArray zipData = reply->readAll();
    QBuffer buffer(&zipData);
    // Open zip archive
    QuaZip zip(&buffer);
    if(!zip.open(QuaZip::mdUnzip))
        return "";
    // Find the desired file
    if(!zip.setCurrentFile(info.fileName, QuaZip::csInsensitive))
        return "";
    QuaZipFile binFile(&zip);
    if(!binFile.open(QIODevice::ReadOnly))
        return "";
    QByteArray binary = binFile.readAll();
    // Check the hash
    if(QCryptographicHash::hash(binary, QCryptographicHash::Sha256) != info.hash)
        return "";
    return binary;
}

Here is the call graph for this function:

Here is the caller graph for this function:

float KbFirmware::_latestForBoard ( const QString &  features, bool  waitForComplete  )

private

Definition at line 165 of file kbfirmware.cpp.

References checkUpdates(), KbManager::ckbDaemonVersionF(), KbManager::ckbGuiVersionF(), KbFirmware::FW::ckbVersion, downloaded(), fwTable, KbFirmware::FW::fwVersion, KbFirmware::FW::hash, quit(), tableDownload, and tableName().

Referenced by versionForBoard().

                                                                              {
    if((tableDownload || checkUpdates()) && waitForComplete){
        // If waiting is desired, enter an event loop and stay here until the download is finished
        QEventLoop loop(this);
        connect(this, SIGNAL(downloaded()), &loop, SLOT(quit()));
        loop.exec();
    }
    // Find this board
    QString name = tableName(features);
    FW info = fwTable.value(name);
    if(info.hash.isEmpty())
        return 0.f;
    // Don't return the new version if the current ckb doesn't support it
    if(info.ckbVersion > KbManager::ckbGuiVersionF() || info.ckbVersion > KbManager::ckbDaemonVersionF())
        return -1.f;
    return info.fwVersion;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static bool KbFirmware::checkUpdates ( )

inlinestatic

Definition at line 15 of file kbfirmware.h.

References _checkUpdates(), and instance.

Referenced by _latestForBoard(), and MainWindow::timerTick().

{ return instance._checkUpdates(); }

Here is the call graph for this function:

Here is the caller graph for this function:

static QByteArray KbFirmware::dataForBoard ( const QString &  features )

inlinestatic

Definition at line 25 of file kbfirmware.h.

References _fileForBoard(), and instance.

Referenced by FwUpgradeDialog::exec().

{ return instance._fileForBoard(features); }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbFirmware::downloaded ( )

signal

Definition at line 148 of file moc_kbfirmware.cpp.

Referenced by _latestForBoard(), and downloadFinished().

{
    QMetaObject::activate(this, &staticMetaObject, 0, Q_NULLPTR);
}

Here is the caller graph for this function:

void KbFirmware::downloadFinished ( )

privateslot

Definition at line 144 of file kbfirmware.cpp.

References downloaded(), processDownload(), and tableDownload.

Referenced by _checkUpdates().

                                 {
    if(!tableDownload)
        return;
    processDownload(tableDownload);
    tableDownload->deleteLater();
    tableDownload = 0;
    emit downloaded();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static bool KbFirmware::hasDownloaded ( )

inlinestatic

Definition at line 18 of file kbfirmware.h.

References instance, and lastFinished.

Referenced by KbWidget::on_fwUpdButton_clicked(), and KbWidget::updateFwButton().

{ return instance.lastFinished != 0; }

Here is the caller graph for this function:

void KbFirmware::initManager ( )

private

Definition at line 24 of file kbfirmware.cpp.

References networkManager.

Referenced by _checkUpdates().

                            {
    if(networkManager)
        return;
    networkManager = new QNetworkAccessManager();
}

Here is the caller graph for this function:

void KbFirmware::processDownload ( QNetworkReply *  reply )

privateslot

Definition at line 44 of file kbfirmware.cpp.

References KbFirmware::FW::ckbVersion, KbFirmware::FW::fileName, fwTable, fwTableHash, KbFirmware::FW::fwVersion, hasGPG, KbFirmware::FW::hash, lastCheck, lastFinished, NO, KbManager::parseVersionString(), UNKNOWN, KbFirmware::FW::url, and YES.

Referenced by downloadFinished().

                                                    {
    if(reply->error() != QNetworkReply::NoError)
        return;
    // Update last check
    lastCheck = lastFinished = QDateTime::currentMSecsSinceEpoch();
    QByteArray data = reply->readAll();
    // Don't do anything if this is the same as the last version downloaded
    QByteArray hash = QCryptographicHash::hash(data, QCryptographicHash::Sha256);
    if(hash == fwTableHash)
        return;
    fwTableHash = hash;
    if(hasGPG == UNKNOWN){
        // Check for a GPG installation
        QProcess gpg;
        gpg.start("gpg", QStringList("--version"));
        gpg.waitForFinished();
        if(gpg.error() == QProcess::FailedToStart)
            // No GPG install
            hasGPG = NO;
        else {
            QString output = QString::fromUtf8(gpg.readAll());
            // Must support RSA keys and SHA256
            if(output.contains("RSA", Qt::CaseInsensitive) && output.contains("SHA256", Qt::CaseInsensitive))
                hasGPG = YES;
            else
                hasGPG = NO;
        }
        if(!hasGPG)
            qDebug() << "No GPG detected, signature verification disabled";
    }
    if(hasGPG){
        // If GPG is available, check the signature on the file before proceeding.
        QDir tmp = QDir::temp();
        // Save file to a temporary path. Include PID to avoid conflicts
        qint64 pid = QCoreApplication::applicationPid();
        QString fwPath = tmp.absoluteFilePath(QString("ckb-%1-firmware").arg(pid));
        QFile firmware(fwPath);
        if(!firmware.open(QIODevice::WriteOnly)
                || firmware.write(data) != data.length()){
            qDebug() << "Failed to write firmware file to temporary location, aborting firmware check";
            return;
        }
        firmware.close();
        // Write GPG key
        QString keyPath = tmp.absoluteFilePath(QString("ckb-%1-key.gpg").arg(pid));
        if(!QFile::copy(":/bin/ckb-next-key.gpg", keyPath)){
            firmware.remove();
            qDebug() << "Failed to write GPG key to temporary location, aborting firmware check";
            return;
        }
        // Check signature
        QProcess gpg;
        gpg.start("gpg", QStringList("--no-default-keyring") << "--keyring" << keyPath << "--verify" << fwPath);
        gpg.waitForFinished();
        // Clean up temp files
        tmp.remove(fwPath);
        tmp.remove(keyPath);
        if(gpg.error() != QProcess::UnknownError || gpg.exitCode() != 0){
            qDebug() << "GPG couldn't verify firmware signature:";
            qDebug() << gpg.readAllStandardOutput();
            qDebug() << gpg.readAllStandardError();
            return;
        }
        // Signature good, proceed to update database
    }
    fwTable.clear();
    QStringList lines = QString::fromUtf8(data).split("\n");
    bool scan = false;
    foreach(QString line, lines){
        // Collapse whitespace
        line.replace(QRegExp("\\s+"), " ").remove(QRegExp("^\\s")).remove(QRegExp("\\s$"));
        // Skip empty or commented-out lines
        if(line.length() == 0 || line.at(0) == '#')
            continue;
        // Don't read anything until the entries begin and don't read anything after they end
        if(!scan){
            if(line == "!BEGIN FW ENTRIES")
                scan = true;
            else
                continue;
        }
        if(line == "!END FW ENTRIES")
            break;
        QStringList components = line.split(" ");
        if(components.length() != 7)
            continue;
        // "VENDOR-PRODUCT"
        QString device = components[0].toUpper() + "-" + components[1].toUpper();
        FW fw;
        fw.fwVersion = components[2].toFloat();                             // Firmware blob version
        fw.url = QUrl::fromPercentEncoding(components[3].toLatin1());       // URL to zip file
        fw.ckbVersion = KbManager::parseVersionString(components[4]);       // Minimum ckb version
        fw.fileName = QUrl::fromPercentEncoding(components[5].toLatin1());  // Name of file inside zip
        fw.hash = QByteArray::fromHex(components[6].toLatin1());            // SHA256 of file inside zip
        // Update entry
        fwTable[device] = fw;
    }
    qDebug() << "Downloaded new firmware list." << fwTable.count() << "entries found.";
}

Here is the call graph for this function:

Here is the caller graph for this function:

static float KbFirmware::versionForBoard ( const QString &  features, bool  waitForComplete = false  )

inlinestatic

Definition at line 22 of file kbfirmware.h.

References _latestForBoard(), and instance.

Referenced by MainWindow::checkFwUpdates(), KbWidget::on_fwUpdButton_clicked(), and KbWidget::updateFwButton().

{ return instance._latestForBoard(features, waitForComplete); }

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

QMap<QString, FW> KbFirmware::fwTable

private

Definition at line 41 of file kbfirmware.h.

Referenced by _fileForBoard(), _latestForBoard(), and processDownload().

QByteArray KbFirmware::fwTableHash

private

Definition at line 43 of file kbfirmware.h.

Referenced by processDownload().

enum { ... } KbFirmware::hasGPG

Referenced by processDownload().

KbFirmware KbFirmware::instance

staticprivate

Definition at line 59 of file kbfirmware.h.

Referenced by checkUpdates(), dataForBoard(), hasDownloaded(), and versionForBoard().

quint64 KbFirmware::lastCheck

private

Definition at line 32 of file kbfirmware.h.

Referenced by _checkUpdates(), and processDownload().

quint64 KbFirmware::lastFinished

private

Definition at line 32 of file kbfirmware.h.

Referenced by hasDownloaded(), and processDownload().

QNetworkAccessManager* KbFirmware::networkManager

private

Definition at line 47 of file kbfirmware.h.

Referenced by _checkUpdates(), _fileForBoard(), and initManager().

QNetworkReply* KbFirmware::tableDownload

private

Definition at line 50 of file kbfirmware.h.

Referenced by _checkUpdates(), _latestForBoard(), and downloadFinished().

---

The documentation for this class was generated from the following files:

• src/ckb/kbfirmware.h
• src/ckb/kbfirmware.cpp
• src/ckb/release/moc_kbfirmware.cpp
