#include <src/ckb/kbperf.h>

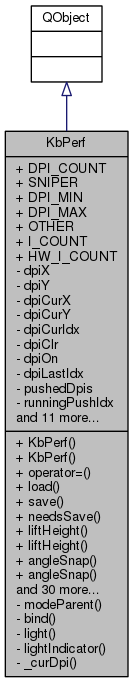

Inheritance diagram for KbPerf:

Collaboration diagram for KbPerf:

Public Types
enum	height { LOW = 1, LOWMED, MEDIUM, MEDHIGH, HIGH }

enum	indicator { NUM, CAPS, SCROLL, HW_IMAX = SCROLL, MODE, MACRO, LIGHT, LOCK, MUTE }

enum	i_hw { NONE = -1, NORMAL, ON, OFF }

Signals
void	didLoad ()

void	settingsUpdated ()

Public Member Functions
	KbPerf (KbMode *parent)

	KbPerf (KbMode *parent, const KbPerf &other)

const KbPerf &	operator= (const KbPerf &rhs)

void	load (CkbSettings &settings)

void	save (CkbSettings &settings)

bool	needsSave () const

height	liftHeight () const

void	liftHeight (height newHeight)

bool	angleSnap () const

void	angleSnap (bool newAngleSnap)

QPoint	dpi (int index) const

void	dpi (int index, const QPoint &newValue)

QPoint	sniperDpi () const

void	sniperDpi (const QPoint &newValue)

void	dpi (int index, int newValue)

void	sniperDpi (int newValue)

QPoint	curDpi () const

void	curDpi (const QPoint &newDpi)

void	curDpi (int newDpi)

int	curDpiIdx () const

void	curDpiIdx (int newIdx)

void	dpiUp ()

void	dpiDown ()

bool	dpiEnabled (int index) const

void	dpiEnabled (int index, bool newEnabled)

quint64	pushDpi (const QPoint &newDpi)

quint64	pushDpi (int newDpi)

quint64	pushSniper ()

void	popDpi (quint64 pushIdx)

float	iOpacity () const

void	iOpacity (float newIOpacity)

bool	dpiIndicator () const

void	dpiIndicator (bool newDpiIndicator)

QColor	dpiColor (int index) const

void	dpiColor (int index, const QColor &newColor)

void	getIndicator (indicator index, QColor &color1, QColor &color2, QColor &color3, bool &software_enable, i_hw &hardware_enable)

void	setIndicator (indicator index, const QColor &color1, const QColor &color2, const QColor &color3=QColor(), bool software_enable=true, i_hw hardware_enable=NORMAL)

void	update (QFile &cmd, int notifyNumber, bool force=false, bool saveCustomDpi=true)

void	setNeedsUpdate ()

void	applyIndicators (int modeIndex, const bool indicatorState[HW_I_COUNT])

Static Public Attributes
static const int	DPI_COUNT = 6

static const int	SNIPER = 0

static const int	DPI_MIN = 100

static const int	DPI_MAX = 12000

static const int	OTHER = DPI_COUNT

static const int	I_COUNT = (int)MUTE + 1

static const int	HW_I_COUNT = (int)HW_IMAX + 1

Private Member Functions
KbMode *	modeParent () const

KbBind *	bind () const

KbLight *	light () const

void	lightIndicator (const char *name, QRgb rgba)

void	_curDpi (const QPoint &newDpi)

Private Attributes
int	dpiX [DPI_COUNT]

int	dpiY [DPI_COUNT]

int	dpiCurX

int	dpiCurY

int	dpiCurIdx

QColor	dpiClr [DPI_COUNT+1]

bool	dpiOn [DPI_COUNT]

int	dpiLastIdx

QMap< quint64, QPoint >	pushedDpis

uint	runningPushIdx

float	_iOpacity

QColor	iColor [I_COUNT][2]

QColor	light100Color

QColor	muteNAColor

bool	iEnable [I_COUNT]

i_hw	hwIType [HW_I_COUNT]

bool	_dpiIndicator

height	_liftHeight

bool	_angleSnap

bool	_needsUpdate

bool	_needsSave

Detailed Description

Definition at line 15 of file kbperf.h.

Member Enumeration Documentation

enum KbPerf::height

Enumerator
LOW
LOWMED
MEDIUM
MEDHIGH
HIGH

Definition at line 31 of file kbperf.h.

                 {
         LOW = 1,
         LOWMED,
         MEDIUM,
         MEDHIGH,
         HIGH
     };

enum KbPerf::i_hw

Enumerator
NONE
NORMAL
ON
OFF

Definition at line 98 of file kbperf.h.

               {
         NONE = -1,  // For non-hardware indicators
         NORMAL,
         ON,
         OFF
     };

enum KbPerf::indicator

Enumerator
NUM
CAPS
SCROLL
HW_IMAX
MODE
MACRO
LIGHT
LOCK
MUTE

Definition at line 85 of file kbperf.h.

                    {
         // Hardware
         NUM,
         CAPS,
         SCROLL, HW_IMAX = SCROLL,
         // Software
         MODE,
         MACRO,
         LIGHT,
         LOCK,
         MUTE
     };

Constructor & Destructor Documentation

KbPerf::KbPerf ( KbMode * parent )

explicit

Definition at line 13 of file kbperf.cpp.

References CAPS, DPI_COUNT, dpiClr, dpiCurIdx, dpiCurX, dpiCurY, dpiLastIdx, dpiOn, dpiX, dpiY, HW_I_COUNT, hwIType, I_COUNT, iColor, iEnable, LIGHT, light100Color, LOCK, MACRO, MODE, MUTE, muteNAColor, NORMAL, NUM, and SCROLL.

                              :
     QObject(parent), runningPushIdx(1),
     _iOpacity(1.f), _dpiIndicator(true), _liftHeight(MEDIUM), _angleSnap(false),
     _needsUpdate(true), _needsSave(true) {
     // Default DPI settings
     dpiX[0] = dpiY[0] = 400;
     dpiX[1] = dpiY[1] = 450;
     dpiX[2] = dpiY[2] = 800;
     dpiX[3] = dpiY[3] = 1500;
     dpiX[4] = dpiY[4] = 3000;
     dpiX[5] = dpiY[5] = 6000;
     dpiClr[0] = QColor(255, 0, 0);
     dpiClr[1] = QColor(255, 192, 0);
     dpiClr[2] = QColor(255, 255, 0);
     dpiClr[3] = QColor(0, 255, 0);
     dpiClr[4] = QColor(0, 255, 255);
     dpiClr[5] = QColor(255, 255, 255);
     dpiClr[6] = QColor(192, 192, 192);
     for(int i = 0; i < DPI_COUNT; i++)
         dpiOn[i] = true;
     dpiLastIdx = dpiCurIdx = 3;
     dpiCurX = dpiX[dpiCurIdx];
     dpiCurY = dpiY[dpiCurIdx];
     // Default indicators
     iColor[NUM][0] = iColor[CAPS][0] = iColor[SCROLL][0] = QColor(0, 255, 0);   // Lock lights: on = green, off = black
     iColor[NUM][1] = iColor[CAPS][1] = iColor[SCROLL][1] = QColor(0, 0, 0);
     iColor[MACRO][0] = QColor(255, 0, 0);                                       // Macro: on = red, off = black
     iColor[LOCK][0] = QColor(255, 255, 255);                                    // Win lock: on = white, off = black
     iColor[MODE][0] = iColor[MUTE][0] = QColor(255, 255, 255, 0);               // Mode, mute: on = transparent, off = black
     iColor[MODE][1] = iColor[MACRO][1] = iColor[LOCK][1] = iColor[MUTE][1] = muteNAColor = QColor(0, 0, 0);
     iColor[LIGHT][0] = QColor(255, 0, 0);       // Brightness: red, yellow, white
     iColor[LIGHT][1] = QColor(255, 255, 0);
     light100Color = QColor(255, 255, 255);
     for(int i = 0; i < HW_I_COUNT; i++){
         // Set all lock lights to HW mode
         iEnable[i] = false;
         hwIType[i] = NORMAL;
     }
     for(int i = HW_I_COUNT; i < I_COUNT; i++){
         // Turn all other indicators on
         iEnable[i] = true;
     }
 }

KbPerf::KbPerf	(	KbMode *	parent,
		const KbPerf &	other
	)

Definition at line 57 of file kbperf.cpp.

References curDpi(), DPI_COUNT, dpiClr, dpiOn, dpiX, dpiY, hwIType, I_COUNT, iColor, iEnable, and pushedDpis.

                                                   :
     QObject(parent), dpiCurX(other.dpiCurX), dpiCurY(other.dpiCurY), dpiCurIdx(other.dpiCurIdx), dpiLastIdx(other.dpiLastIdx), runningPushIdx(1),
     _iOpacity(other._iOpacity), light100Color(other.light100Color), muteNAColor(other.muteNAColor), _dpiIndicator(other._dpiIndicator),
     _liftHeight(other._liftHeight), _angleSnap(other._angleSnap),
     _needsUpdate(true), _needsSave(true) {
     memcpy(dpiX, other.dpiX, sizeof(dpiX));
     memcpy(dpiY, other.dpiY, sizeof(dpiY));
     for(int i = 0; i < DPI_COUNT + 1; i++)
         dpiClr[i] = other.dpiClr[i];
     memcpy(dpiOn, other.dpiOn, sizeof(dpiOn));
     for(int i = 0; i < I_COUNT; i++){
         iColor[i][0] = other.iColor[i][0];
         iColor[i][1] = other.iColor[i][1];
     }
     memcpy(iEnable, other.iEnable, sizeof(iEnable));
     memcpy(hwIType, other.hwIType, sizeof(hwIType));
     // Don't copy pushed DPI states. If the other mode has any, restore the original DPI
     if(!other.pushedDpis.isEmpty())
         curDpi(other.pushedDpis[0]);
 }

Here is the call graph for this function:

Member Function Documentation

void KbPerf::_curDpi ( const QPoint & newDpi )

private

Definition at line 262 of file kbperf.cpp.

References _needsSave, _needsUpdate, DPI_COUNT, dpiCurIdx, dpiCurX, dpiCurY, dpiLastIdx, dpiX, and dpiY.

Referenced by curDpi(), popDpi(), and pushDpi().

                                         {
     dpiCurX = newDpi.x();
     dpiCurY = newDpi.y();
     // Set current/last index
     dpiCurIdx = -1;
     for(int i = 0; i < DPI_COUNT; i++){
         if(dpiCurX == dpiX[i] && dpiCurY == dpiY[i]){
             dpiCurIdx = i;
             if(i != 0)
                 dpiLastIdx = i;
             break;
         }
     }
     _needsUpdate = _needsSave = true;
 }

Here is the caller graph for this function:

bool KbPerf::angleSnap ( ) const

inline

Definition at line 42 of file kbperf.h.

References _angleSnap.

Referenced by MPerfWidget::on_aSnapBox_clicked(), Kb::readNotify(), and MPerfWidget::setPerf().

42 { return _angleSnap; }

KbPerf::_angleSnap

bool _angleSnap

Definition: kbperf.h:158

Here is the caller graph for this function:

void KbPerf::angleSnap ( bool newAngleSnap )

Definition at line 368 of file kbperf.cpp.

References _angleSnap, _needsSave, and _needsUpdate.

                                        {
     _angleSnap = newAngleSnap;
     _needsUpdate = _needsSave = true;
 }

void KbPerf::applyIndicators	(	int	modeIndex,
		const bool	indicatorState[HW_I_COUNT]
	)

Definition at line 432 of file kbperf.cpp.

References _dpiIndicator, _iOpacity, bind(), CAPS, curDpiIdx(), dpiClr, getMuteState(), Kb::HWMODE_MAX, iColor, iEnable, LIGHT, light(), light100Color, lightIndicator(), LOCK, MACRO, MODE, MUTE, MUTED, muteNAColor, NUM, OTHER, KbLight::resetIndicators(), SCROLL, and UNMUTED.

Referenced by Kb::frameUpdate().

                                                                       {
     light()->resetIndicators();
     if(_iOpacity <= 0.f)
         return;
     if(_dpiIndicator){
         // Set DPI indicator according to index
         int index = curDpiIdx();
         if(index == -1 || index > OTHER)
             index = OTHER;
         lightIndicator("dpi", dpiClr[index].rgba());
     }
     // KB indicators
     if(iEnable[MODE]){
         for(int i = 0; i < Kb::HWMODE_MAX; i++){
             char name[4];
             snprintf(name, sizeof(name), "m%d", i + 1);
             if(modeIndex == i)
                 lightIndicator(name, iColor[MODE][0].rgba());
             else
                 lightIndicator(name, iColor[MODE][1].rgba());
         }
     }
     if(iEnable[MACRO])
         lightIndicator("mr", iColor[MUTE][1].rgba());
     if(iEnable[LIGHT]){
         switch(light()->dimming()){
         case 0: // 100%
             lightIndicator("light", light100Color.rgba());
             break;
         case 1: // 67%
             lightIndicator("light", iColor[LIGHT][1].rgba());
             break;
         case 2: // 33%
         case 3: // light off
             lightIndicator("light", iColor[LIGHT][0].rgba());
             break;
         }
     }
     if(iEnable[LOCK]){
         if(bind()->winLock())
             lightIndicator("lock", iColor[LOCK][0].rgba());
         else
             lightIndicator("lock", iColor[LOCK][1].rgba());
     }
     if(iEnable[MUTE]){
         switch(getMuteState()){
         case MUTED:
             lightIndicator("mute", iColor[MUTE][0].rgba());
             break;
         case UNMUTED:
             lightIndicator("mute", iColor[MUTE][1].rgba());
             break;
         default:
             lightIndicator("mute", muteNAColor.rgba());
             break;
         }
     }
     // Lock lights
     if(iEnable[NUM])
         lightIndicator("numlock", indicatorState[0] ? iColor[NUM][0].rgba() : iColor[NUM][1].rgba());
     if(iEnable[CAPS])
         lightIndicator("caps", indicatorState[1] ? iColor[CAPS][0].rgba() : iColor[CAPS][1].rgba());
     if(iEnable[SCROLL])
         lightIndicator("scroll", indicatorState[2] ? iColor[SCROLL][0].rgba() : iColor[SCROLL][1].rgba());
 }

Here is the call graph for this function:

Here is the caller graph for this function:

KbBind * KbPerf::bind ( ) const

private

Definition at line 100 of file kbperf.cpp.

References KbMode::bind(), and modeParent().

Referenced by applyIndicators().

                            {
     return modeParent()->bind();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

QPoint KbPerf::curDpi ( ) const

inline

Definition at line 57 of file kbperf.h.

References dpiCurX, and dpiCurY.

Referenced by curDpiIdx(), KbPerf(), load(), operator=(), and pushDpi().

57 { return QPoint(dpiCurX, dpiCurY); }

KbPerf::dpiCurY

int dpiCurY

Definition: kbperf.h:134

KbPerf::dpiCurX

int dpiCurX

Definition: kbperf.h:134

Here is the caller graph for this function:

void KbPerf::curDpi ( const QPoint & newDpi )

Definition at line 278 of file kbperf.cpp.

References _curDpi(), popDpi(), and pushedDpis.

                                        {
     while(pushedDpis.count() > 0)
         popDpi(pushedDpis.keys().last());
     _curDpi(newDpi);
 }

Here is the call graph for this function:

void KbPerf::curDpi ( int newDpi )

inline

Definition at line 59 of file kbperf.h.

References curDpi().

Referenced by curDpi().

59 { curDpi(QPoint(newDpi, newDpi)); }

KbPerf::curDpi

QPoint curDpi() const

Definition: kbperf.h:57

Here is the call graph for this function:

Here is the caller graph for this function:

int KbPerf::curDpiIdx ( ) const

inline

Definition at line 61 of file kbperf.h.

References dpiCurIdx.

Referenced by applyIndicators(), dpiDown(), dpiUp(), and Kb::readNotify().

61 { return dpiCurIdx; }

KbPerf::dpiCurIdx

int dpiCurIdx

Definition: kbperf.h:134

Here is the caller graph for this function:

void KbPerf::curDpiIdx ( int newIdx )

inline

Definition at line 62 of file kbperf.h.

References curDpi(), and dpi().

62 { curDpi(dpi(newIdx)); }

KbPerf::dpi

QPoint dpi(int index) const

Definition: kbperf.h:48

KbPerf::curDpi

QPoint curDpi() const

Definition: kbperf.h:57

Here is the call graph for this function:

void KbPerf::didLoad ( )

signal

Definition at line 134 of file moc_kbperf.cpp.

Referenced by load().

 {
     QMetaObject::activate(this, &staticMetaObject, 0, Q_NULLPTR);
 }

Here is the caller graph for this function:

QPoint KbPerf::dpi ( int index ) const

inline

Definition at line 48 of file kbperf.h.

References DPI_COUNT, dpiX, and dpiY.

Referenced by MPerfWidget::boxXChanged(), MPerfWidget::boxYChanged(), curDpiIdx(), KeyAction::keyEvent(), Kb::readNotify(), RebindWidget::setBind(), MPerfWidget::setPerf(), MPerfWidget::sliderXMoved(), MPerfWidget::sliderYMoved(), and sniperDpi().

48 { if(index < 0 || index >= DPI_COUNT) return QPoint(); return QPoint(dpiX[index], dpiY[index]); }

KbPerf::DPI_COUNT

static const int DPI_COUNT

Definition: kbperf.h:46

KbPerf::dpiY

int dpiY[DPI_COUNT]

Definition: kbperf.h:133

KbPerf::dpiX

int dpiX[DPI_COUNT]

Definition: kbperf.h:132

Here is the caller graph for this function:

void KbPerf::dpi	(	int	index,
		const QPoint &	newValue
	)

Definition at line 249 of file kbperf.cpp.

References _needsSave, _needsUpdate, DPI_COUNT, dpiCurIdx, dpiCurX, dpiCurY, dpiX, and dpiY.

                                                  {
     if(index < 0 || index >= DPI_COUNT)
         return;
     dpiX[index] = newValue.x();
     dpiY[index] = newValue.y();
     // Update current DPI if needed
     if(dpiCurIdx == index){
         dpiCurX = newValue.x();
         dpiCurY = newValue.y();
     }
     _needsUpdate = _needsSave = true;
 }

void KbPerf::dpi	(	int	index,
		int	newValue
	)

inline

Definition at line 53 of file kbperf.h.

References dpi().

Referenced by dpi().

53 { dpi(index, QPoint(newValue, newValue)); }

KbPerf::dpi

QPoint dpi(int index) const

Definition: kbperf.h:48

Here is the call graph for this function:

Here is the caller graph for this function:

QColor KbPerf::dpiColor ( int index ) const

inline

Definition at line 82 of file kbperf.h.

References dpiClr.

Referenced by MPerfWidget::colorChanged(), Kb::readNotify(), MPerfWidget::setPerf(), and update().

82 { return dpiClr[index]; }

KbPerf::dpiClr

QColor dpiClr[DPI_COUNT+1]

Definition: kbperf.h:135

Here is the caller graph for this function:

void KbPerf::dpiColor	(	int	index,
		const QColor &	newColor
	)

inline

Definition at line 83 of file kbperf.h.

References _needsSave, _needsUpdate, and dpiClr.

83 { dpiClr[index] = newColor; _needsUpdate = _needsSave = true; }

KbPerf::_needsUpdate

bool _needsUpdate

Definition: kbperf.h:160

KbPerf::_needsSave

bool _needsSave

Definition: kbperf.h:160

KbPerf::dpiClr

QColor dpiClr[DPI_COUNT+1]

Definition: kbperf.h:135

void KbPerf::dpiDown ( )

Definition at line 319 of file kbperf.cpp.

References curDpiIdx(), dpiOn, and SNIPER.

Referenced by KeyAction::keyEvent().

                     {
     int idx = curDpiIdx();
     do {
         idx--;
         if(idx <= SNIPER)
             return;
     } while(!dpiOn[idx]);
     curDpiIdx(idx);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool KbPerf::dpiEnabled ( int index ) const

inline

Definition at line 66 of file kbperf.h.

References dpiOn.

Referenced by MPerfWidget::enableChanged(), Kb::readNotify(), and MPerfWidget::setPerf().

66 { return dpiOn[index]; }

KbPerf::dpiOn

bool dpiOn[DPI_COUNT]

Definition: kbperf.h:136

Here is the caller graph for this function:

void KbPerf::dpiEnabled	(	int	index,
		bool	newEnabled
	)

inline

Definition at line 67 of file kbperf.h.

References _needsSave, _needsUpdate, and dpiOn.

67 { if(index <= 0) return; dpiOn[index] = newEnabled; _needsUpdate = _needsSave = true; }

KbPerf::_needsUpdate

bool _needsUpdate

Definition: kbperf.h:160

KbPerf::dpiOn

bool dpiOn[DPI_COUNT]

Definition: kbperf.h:136

KbPerf::_needsSave

bool _needsSave

Definition: kbperf.h:160

bool KbPerf::dpiIndicator ( ) const

inline

Definition at line 79 of file kbperf.h.

References _dpiIndicator.

Referenced by MPerfWidget::on_indicBox_clicked(), and MPerfWidget::setPerf().

79 { return _dpiIndicator; }

KbPerf::_dpiIndicator

bool _dpiIndicator

Definition: kbperf.h:154

Here is the caller graph for this function:

void KbPerf::dpiIndicator ( bool newDpiIndicator )

inline

Definition at line 80 of file kbperf.h.

References _dpiIndicator, and _needsSave.

80 { _dpiIndicator = newDpiIndicator; _needsSave = true; }

KbPerf::_needsSave

bool _needsSave

Definition: kbperf.h:160

KbPerf::_dpiIndicator

bool _dpiIndicator

Definition: kbperf.h:154

void KbPerf::dpiUp ( )

Definition at line 308 of file kbperf.cpp.

References curDpiIdx(), DPI_COUNT, and dpiOn.

Referenced by KeyAction::keyEvent().

                   {
     // Scroll past disabled DPIs and choose the next one up
     int idx = curDpiIdx();
     do {
         idx++;
         if(idx >= DPI_COUNT)
             return;
     } while(!dpiOn[idx]);
     curDpiIdx(idx);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::getIndicator	(	indicator	index,
		QColor &	color1,
		QColor &	color2,
		QColor &	color3,
		bool &	software_enable,
		i_hw &	hardware_enable
	)

Definition at line 329 of file kbperf.cpp.

References HW_IMAX, hwIType, I_COUNT, iColor, iEnable, LIGHT, light100Color, MUTE, muteNAColor, and NONE.

Referenced by KPerfWidget::setPerf().

                                                                                                                                       {
     if(index < 0 || index >= I_COUNT)
         return;
     color1 = iColor[index][0];
     color2 = iColor[index][1];
     if(index == LIGHT)
         color3 = light100Color;
     else if(index == MUTE)
         color3 = muteNAColor;
     else
         color3 = QColor();
     software_enable = iEnable[index];
     hardware_enable = (index <= HW_IMAX ? hwIType[index] : NONE);
 }

Here is the caller graph for this function:

float KbPerf::iOpacity ( ) const

inline

Definition at line 76 of file kbperf.h.

References _iOpacity.

Referenced by KPerfWidget::on_intensityBox_valueChanged(), MPerfWidget::on_spinBox_valueChanged(), KPerfWidget::setPerf(), and MPerfWidget::setPerf().

76 { return _iOpacity; }

KbPerf::_iOpacity

float _iOpacity

Definition: kbperf.h:149

Here is the caller graph for this function:

void KbPerf::iOpacity ( float newIOpacity )

inline

Definition at line 77 of file kbperf.h.

References _iOpacity, and _needsSave.

77 { _iOpacity = newIOpacity; _needsSave = true; }

KbPerf::_iOpacity

float _iOpacity

Definition: kbperf.h:149

KbPerf::_needsSave

bool _needsSave

Definition: kbperf.h:160

height KbPerf::liftHeight ( ) const

inline

Definition at line 38 of file kbperf.h.

References _liftHeight.

Referenced by MPerfWidget::on_lHeightBox_activated(), Kb::readNotify(), and MPerfWidget::setPerf().

38 { return _liftHeight; }

KbPerf::_liftHeight

height _liftHeight

Definition: kbperf.h:157

Here is the caller graph for this function:

void KbPerf::liftHeight ( height newHeight )

Definition at line 361 of file kbperf.cpp.

References _liftHeight, _needsSave, _needsUpdate, and HIGH.

                                        {
     if(newHeight < LOW || newHeight > HIGH)
         return;
     _liftHeight = newHeight;
     _needsUpdate = _needsSave = true;
 }

KbLight * KbPerf::light ( ) const

private

Definition at line 104 of file kbperf.cpp.

References KbMode::light(), and modeParent().

Referenced by applyIndicators(), and lightIndicator().

                              {
     return modeParent()->light();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::lightIndicator	(	const char *	name,
		QRgb	rgba
	)

private

Definition at line 425 of file kbperf.cpp.

References _iOpacity, light(), and KbLight::setIndicator().

Referenced by applyIndicators().

                                                       {
     int a = round(qAlpha(rgba) * _iOpacity);
     if(a <= 0)
         return;
     light()->setIndicator(name, qRgba(qRed(rgba), qGreen(rgba), qBlue(rgba), a));
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::load ( CkbSettings & settings )

Definition at line 108 of file kbperf.cpp.

References _angleSnap, _dpiIndicator, _iOpacity, _liftHeight, _needsSave, CkbSettings::contains(), CkbSettings::containsGroup(), curDpi(), didLoad(), DPI_COUNT, dpiClr, dpiLastIdx, dpiOn, dpiX, dpiY, HIGH, HW_IMAX, hwIType, I_COUNT, iColor, iEnable, LIGHT, light100Color, LOCK, MACRO, MEDIUM, MODE, MUTE, muteNAColor, NORMAL, OTHER, pushedDpis, runningPushIdx, and CkbSettings::value().

Referenced by KbMode::KbMode().

                                       {
     pushedDpis.clear();
     runningPushIdx = 1;
     _needsSave = false;
     bool readIndicators = true;
     if(!settings.containsGroup("Performance/Indicators")){
         // Read old indicator settings from the lighting group, if present
         // (ckb <= v0.2.0)
         SGroup group(settings, "Lighting");
         if(settings.contains("InactiveIndicators")){
             bool inOk = false;
             int inactive = settings.value("InactiveIndicators").toInt(&inOk);
             if(!inOk || inactive > 2)
                 inactive = 2;
             if(inactive == 1)
                 _iOpacity = 0.75f;
             else if(inactive == 0)
                 _iOpacity = 0.5f;
             else if(inactive < 0){
                 // Indicators disabled
                 iEnable[MODE] = iEnable[MACRO] = iEnable[LIGHT] = iEnable[LOCK]  = iEnable[MUTE] = false;
             }
             bool showMute = (settings.value("ShowMute").toInt(&inOk) != 0);
             if(inOk && !showMute)
                 iEnable[MUTE] = false;
             readIndicators = false;
         }
     }
     SGroup group(settings, "Performance");
     // Read DPI settings
     {
         SGroup group(settings, "DPI");
         for(int i = 0; i < DPI_COUNT; i++){
             QString iStr = QString::number(i);
             QPoint value = settings.value(iStr).toPoint();
             if(value.isNull())
                 continue;
             dpiX[i] = value.x(); dpiY[i] = value.y();
             QColor color = settings.value(iStr + "RGB").toString();
             if(color.isValid())
                 dpiClr[i] = color;
             if(i != 0)
                 dpiOn[i] = !settings.value(iStr + "Disabled").toBool();
         }
         QColor color = settings.value("6RGB").toString();
         if(color.isValid())
             dpiClr[OTHER] = color;
         if(settings.contains("LastIdx")){
             dpiLastIdx = settings.value("LastIdx").toInt();
             if(dpiLastIdx >= DPI_COUNT || dpiLastIdx < 0)
                 dpiLastIdx = 1;
         }
         QPoint value = settings.value("Current").toPoint();
         if(!value.isNull())
             curDpi(value);
     }
     // Read misc. mouse settings
     _liftHeight = (height)settings.value("LiftHeight").toInt();
     if(_liftHeight < LOW || _liftHeight > HIGH)
         _liftHeight = MEDIUM;
     _angleSnap = settings.value("AngleSnap").toBool();
     if(settings.contains("NoIndicator")){
         // ckb <= v0.2.0
         _dpiIndicator = !settings.value("NoIndicator").toBool();
     } else {
         _dpiIndicator = settings.value("Indicators/DPI", true).toBool();
     }
     // Read indicator settings
     if(readIndicators){
         SGroup group(settings, "Indicators");
         _iOpacity = settings.value("Opacity", 100).toInt() / 100.f;
         for(int i = 0; i < I_COUNT; i++){
             SGroup group(settings, QString::number(i));
             QColor color = settings.value("RGB0").toString();
             if(color.isValid())
                 iColor[i][0] = color;
             color = settings.value("RGB1").toString();
             if(color.isValid())
                 iColor[i][1] = color;
             if(i == LIGHT){
                 color = settings.value("RGB2").toString();
                 if(color.isValid())
                     light100Color = color;
             } else if(i == MUTE){
                 color = settings.value("RGB2").toString();
                 if(color.isValid())
                     muteNAColor = color;
             }
             if(i <= HW_IMAX){
                 iEnable[i] = settings.value("Enable", false).toBool();
                 hwIType[i] = (i_hw)settings.value("Hardware", (int)NORMAL).toInt();
             } else {
                 iEnable[i] = settings.value("Enable", true).toBool();
             }
         }
     }
     emit didLoad();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

KbMode* KbPerf::modeParent ( ) const

inlineprivate

Definition at line 124 of file kbperf.h.

Referenced by bind(), and light().

124 { return (KbMode*)parent(); }

KbMode

Definition: kbmode.h:36

Here is the caller graph for this function:

bool KbPerf::needsSave ( ) const

inline

Definition at line 28 of file kbperf.h.

References _needsSave.

Referenced by KbMode::needsSave().

28 { return _needsSave; }

KbPerf::_needsSave

bool _needsSave

Definition: kbperf.h:160

Here is the caller graph for this function:

const KbPerf & KbPerf::operator= ( const KbPerf & rhs )

Definition at line 78 of file kbperf.cpp.

References _angleSnap, _dpiIndicator, _iOpacity, _liftHeight, _needsSave, _needsUpdate, curDpi(), DPI_COUNT, dpiClr, dpiCurIdx, dpiCurX, dpiCurY, dpiLastIdx, dpiOn, dpiX, dpiY, hwIType, I_COUNT, iColor, iEnable, light100Color, muteNAColor, pushedDpis, and runningPushIdx.

                                                    {
     dpiCurX = other.dpiCurX; dpiCurY = other.dpiCurY; dpiCurIdx = other.dpiCurIdx; dpiLastIdx = other.dpiLastIdx; runningPushIdx = 1;
     _iOpacity = other._iOpacity; light100Color = other.light100Color; muteNAColor = other.muteNAColor; _dpiIndicator = other._dpiIndicator;
     _liftHeight = other._liftHeight; _angleSnap = other._angleSnap;
     _needsUpdate = true; _needsSave = true;
     memcpy(dpiX, other.dpiX, sizeof(dpiX));
     memcpy(dpiY, other.dpiY, sizeof(dpiY));
     for(int i = 0; i < DPI_COUNT + 1; i++)
         dpiClr[i] = other.dpiClr[i];
     memcpy(dpiOn, other.dpiOn, sizeof(dpiOn));
     for(int i = 0; i < I_COUNT; i++){
         iColor[i][0] = other.iColor[i][0];
         iColor[i][1] = other.iColor[i][1];
     }
     memcpy(iEnable, other.iEnable, sizeof(iEnable));
     memcpy(hwIType, other.hwIType, sizeof(hwIType));
     // Don't copy pushed DPI states. If the other mode has any, restore the original DPI
     if(!other.pushedDpis.isEmpty())
         curDpi(other.pushedDpis[0]);
     return other;
 }

Here is the call graph for this function:

void KbPerf::popDpi ( quint64 pushIdx )

Definition at line 296 of file kbperf.cpp.

References _curDpi(), _needsSave, _needsUpdate, map_last, and pushedDpis.

Referenced by curDpi(), and KeyAction::keyEvent().

                                   {
     if(pushIdx == 0 || !pushedDpis.contains(pushIdx))
         return;
     pushedDpis.remove(pushIdx);
     // Set the DPI to the last-pushed value still on the stack
     _curDpi(map_last(pushedDpis));
     // If all values have been popped, remove the original DPI
     if(pushedDpis.count() == 1)
         pushedDpis.clear();
     _needsUpdate = _needsSave = true;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

quint64 KbPerf::pushDpi ( const QPoint & newDpi )

Definition at line 284 of file kbperf.cpp.

References _curDpi(), curDpi(), pushedDpis, and runningPushIdx.

Referenced by KeyAction::keyEvent(), and pushSniper().

                                            {
     if(pushedDpis.isEmpty())
         // Push original DPI
         pushedDpis[0] = curDpi();
     quint64 index = runningPushIdx++;
     if(runningPushIdx == 0)
         runningPushIdx = 1;
     pushedDpis[index] = newDpi;
     _curDpi(newDpi);
     return index;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

quint64 KbPerf::pushDpi ( int newDpi )

inline

Definition at line 71 of file kbperf.h.

References pushDpi().

Referenced by pushDpi().

71 { return pushDpi(QPoint(newDpi, newDpi)); }

KbPerf::pushDpi

quint64 pushDpi(const QPoint &newDpi)

Definition: kbperf.cpp:284

Here is the call graph for this function:

Here is the caller graph for this function:

quint64 KbPerf::pushSniper ( )

inline

Definition at line 72 of file kbperf.h.

References pushDpi(), and sniperDpi().

Referenced by KeyAction::keyEvent().

72 { return pushDpi(sniperDpi()); }

KbPerf::sniperDpi

QPoint sniperDpi() const

Definition: kbperf.h:50

KbPerf::pushDpi

quint64 pushDpi(const QPoint &newDpi)

Definition: kbperf.cpp:284

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::save ( CkbSettings & settings )

Definition at line 207 of file kbperf.cpp.

References _angleSnap, _dpiIndicator, _liftHeight, _needsSave, DPI_COUNT, dpiClr, dpiCurX, dpiCurY, dpiLastIdx, dpiOn, dpiX, dpiY, HW_IMAX, hwIType, I_COUNT, iColor, iEnable, LIGHT, light100Color, MUTE, muteNAColor, OTHER, pushedDpis, and CkbSettings::setValue().

Referenced by KbMode::save().

                                       {
     _needsSave = false;
     SGroup group(settings, "Performance");
     {
         SGroup group(settings, "DPI");
         for(int i = 0; i < DPI_COUNT; i++){
             QString iStr = QString::number(i);
             settings.setValue(iStr, QPoint(dpiX[i], dpiY[i]));
             settings.setValue(iStr + "RGB", dpiClr[i].name(QColor::HexArgb));
             if(i != 0)
                 settings.setValue(iStr + "Disabled", !dpiOn[i]);
         }
         settings.setValue("6RGB", dpiClr[OTHER].name(QColor::HexArgb));
         settings.setValue("LastIdx", dpiLastIdx);
         int curX = dpiCurX, curY = dpiCurY;
         // Ignore any pushed modes
         if(pushedDpis.count() > 0){
             curX = pushedDpis.value(0).x();
             curY = pushedDpis.value(0).y();
         }
         settings.setValue("Current", QPoint(curX, curY));
     }
     settings.setValue("LiftHeight", _liftHeight);
     settings.setValue("AngleSnap", _angleSnap);
     {
         SGroup group(settings, "Indicators");
         settings.setValue("DPI", _dpiIndicator);
         for(int i = 0; i < I_COUNT; i++){
             SGroup group(settings, QString::number(i));
             settings.setValue("RGB0", iColor[i][0].name(QColor::HexArgb));
             settings.setValue("RGB1", iColor[i][1].name(QColor::HexArgb));
             if(i == LIGHT)
                 settings.setValue("RGB2", light100Color.name(QColor::HexArgb));
             else if(i == MUTE)
                 settings.setValue("RGB2", muteNAColor.name(QColor::HexArgb));
             settings.setValue("Enable", iEnable[i]);
             if(i <= HW_IMAX)
                 settings.setValue("Hardware", (int)hwIType[i]);
         }
     }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::setIndicator	(	indicator	index,
		const QColor &	color1,
		const QColor &	color2,
		const QColor &	color3 = `QColor()`,
		bool	software_enable = `true`,
		i_hw	hardware_enable = `NORMAL`
	)

Definition at line 344 of file kbperf.cpp.

References _needsSave, _needsUpdate, HW_IMAX, hwIType, I_COUNT, iColor, iEnable, LIGHT, light100Color, MUTE, muteNAColor, NONE, and NORMAL.

Referenced by KPerfWidget::uiUpdated().

                                                                                                                                                       {
     if(index < 0 || index >= I_COUNT)
         return;
     iColor[index][0] = color1;
     iColor[index][1] = color2;
     if(index == LIGHT)
         light100Color = color3;
     else if(index == MUTE)
         muteNAColor = color3;
     iEnable[index] = software_enable;
     if(hardware_enable == NONE)
         hardware_enable = NORMAL;
     if(index <= HW_IMAX)
         hwIType[index] = hardware_enable;
     _needsUpdate = _needsSave = true;
 }

Here is the caller graph for this function:

void KbPerf::setNeedsUpdate ( )

inline

Definition at line 113 of file kbperf.h.

References _needsUpdate.

Referenced by KbMode::setNeedsUpdate().

113 { _needsUpdate = true; }

KbPerf::_needsUpdate

bool _needsUpdate

Definition: kbperf.h:160

Here is the caller graph for this function:

void KbPerf::settingsUpdated ( )

signal

Definition at line 140 of file moc_kbperf.cpp.

Referenced by update().

 {
     QMetaObject::activate(this, &staticMetaObject, 1, Q_NULLPTR);
 }

Here is the caller graph for this function:

QPoint KbPerf::sniperDpi ( ) const

inline

Definition at line 50 of file kbperf.h.

References dpi(), and SNIPER.

Referenced by pushSniper().

50 { return dpi(SNIPER); }

KbPerf::dpi

QPoint dpi(int index) const

Definition: kbperf.h:48

KbPerf::SNIPER

static const int SNIPER

Definition: kbperf.h:46

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::sniperDpi ( const QPoint & newValue )

inline

Definition at line 51 of file kbperf.h.

References dpi(), and SNIPER.

51 { dpi(SNIPER, newValue); }

KbPerf::dpi

QPoint dpi(int index) const

Definition: kbperf.h:48

KbPerf::SNIPER

static const int SNIPER

Definition: kbperf.h:46

Here is the call graph for this function:

void KbPerf::sniperDpi ( int newValue )

inline

Definition at line 54 of file kbperf.h.

References sniperDpi().

Referenced by sniperDpi().

54 { sniperDpi(QPoint(newValue, newValue)); }

KbPerf::sniperDpi

QPoint sniperDpi() const

Definition: kbperf.h:50

Here is the call graph for this function:

Here is the caller graph for this function:

void KbPerf::update	(	QFile &	cmd,
		int	notifyNumber,
		bool	force = `false`,
		bool	saveCustomDpi = `true`
	)

Definition at line 373 of file kbperf.cpp.

References _angleSnap, _liftHeight, _needsUpdate, DPI_COUNT, dpiColor(), dpiCurIdx, dpiCurX, dpiCurY, dpiOn, dpiX, dpiY, HW_I_COUNT, hwIType, OFF, ON, and settingsUpdated().

Referenced by Kb::frameUpdate(), and Kb::hwSave().

                                                                                {
     if(!force && !_needsUpdate)
         return;
     emit settingsUpdated();
     _needsUpdate = false;
     // Save DPI stage 0 (sniper)
     cmd.write(QString("dpi 0:%1,%2").arg(dpiX[0]).arg(dpiY[0]).toLatin1());
     // If the mouse is set to a custom DPI, save it in stage 1
     int stage = dpiCurIdx;
     if(stage < 0 && saveCustomDpi){
         stage = 1;
         cmd.write(QString(" 1:%1,%2").arg(dpiCurX).arg(dpiCurY).toLatin1());
     } else {
         // Otherwise, save stage 1 normally
         if(!dpiOn[1] && stage != 1)
             cmd.write(" 1:off");
         else
             cmd.write(QString(" 1:%1,%2").arg(dpiX[1]).arg(dpiY[1]).toLatin1());
     }
     // Save stages 1 - 5
     for(int i = 2; i < DPI_COUNT; i++){
         if(!dpiOn[i] && stage != i)
             cmd.write(QString(" %1:off").arg(i).toLatin1());
         else
         cmd.write(QString(" %1:%2,%3").arg(i).arg(dpiX[i]).arg(dpiY[i]).toLatin1());
     }
     // Save stage selection, lift height, and angle snap
     cmd.write(QString(" dpisel %1 lift %2 snap %3").arg(stage).arg(_liftHeight).arg(_angleSnap ? "on" : "off").toLatin1());
     // Save DPI colors
     cmd.write(" rgb");
     for(int i = 0; i < DPI_COUNT; i++){
         QColor color = dpiColor(i);
         cmd.write(" dpi");
         char output[9];
         snprintf(output, sizeof(output), "%1d:%02x%02x%02x", i, color.red(), color.green(), color.blue());
         cmd.write(output);
     }
     // Enable indicator notifications
     cmd.write(QString("\n@%1 inotify all").arg(notifyNumber).toLatin1());
     // Set indicator state
     const char* iNames[HW_I_COUNT] = { "num", "caps", "scroll" };
     for(int i = 0; i < HW_I_COUNT; i++){
         if(hwIType[i] == ON)
             cmd.write(" ion ");
         else if(hwIType[i] == OFF)
             cmd.write(" ioff ");
         else
             cmd.write(" iauto ");
         cmd.write(iNames[i]);
     }
 }
