#include <src/ckb/fwupgradedialog.h>

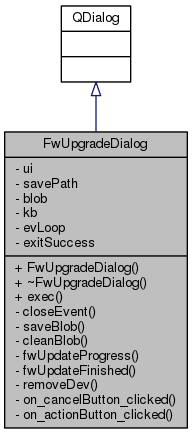

Inheritance diagram for FwUpgradeDialog:

Collaboration diagram for FwUpgradeDialog:

Public Member Functions
	FwUpgradeDialog (QWidget parent, float newV, const QByteArray &fwBlob, Kb device)

	~FwUpgradeDialog ()

int	exec ()

Private Slots
void	fwUpdateProgress (int current, int total)

void	fwUpdateFinished (bool succeeded)

void	removeDev ()

void	on_cancelButton_clicked ()

void	on_actionButton_clicked ()

Private Member Functions
void	closeEvent (QCloseEvent *event)

const QString &	saveBlob ()

void	cleanBlob ()

Private Attributes
Ui::FwUpgradeDialog *	ui

QString	savePath

QByteArray	blob

Kb *	kb

QEventLoop *	evLoop

bool	exitSuccess

Detailed Description

Definition at line 13 of file fwupgradedialog.h.

Constructor & Destructor Documentation

FwUpgradeDialog::FwUpgradeDialog	(	QWidget *	parent,
		float	newV,
		const QByteArray &	fwBlob,
		Kb *	device
	)

Definition at line 31 of file fwupgradedialog.cpp.

References Ui_FwUpgradeDialog::curLabel, Ui_FwUpgradeDialog::devLabel, DIALOG_HEIGHT_MIN, DIALOG_WIDTH, Kb::firmware, fwUpdateFinished(), fwUpdateProgress(), kb, Ui_FwUpgradeDialog::newLabel, removeDev(), Ui_FwUpgradeDialog::setupUi(), ui, and Kb::usbModel.

                                                                                                   :
     QDialog(parent),
     ui(new Ui::FwUpgradeDialog),
     blob(fwBlob), kb(device), evLoop(0), exitSuccess(true)
 {
     ui->setupUi(this);
     ui->curLabel->setText(kb->firmware);
     ui->newLabel->setText(QString::number(newV, 'f', 2));
     ui->devLabel->setText(kb->usbModel);

     connect(device, SIGNAL(destroyed()), this, SLOT(removeDev()));
     connect(device, SIGNAL(fwUpdateProgress(int,int)), this, SLOT(fwUpdateProgress(int,int)));
     connect(device, SIGNAL(fwUpdateFinished(bool)), this, SLOT(fwUpdateFinished(bool)));

     setFixedSize(DIALOG_WIDTH, DIALOG_HEIGHT_MIN);
 }

Here is the call graph for this function:

FwUpgradeDialog::~FwUpgradeDialog ( )

Definition at line 48 of file fwupgradedialog.cpp.

References cleanBlob(), and ui.

                                  {
     cleanBlob();
     delete ui;
 }

Here is the call graph for this function:

Member Function Documentation

void FwUpgradeDialog::cleanBlob ( )

private

Definition at line 77 of file fwupgradedialog.cpp.

References savePath.

Referenced by fwUpdateFinished(), and ~FwUpgradeDialog().

                                {
     if(savePath.isEmpty())
         return;
     QFile(savePath).remove();
     savePath = "";
 }

Here is the caller graph for this function:

void FwUpgradeDialog::closeEvent ( QCloseEvent * event )

private

Definition at line 53 of file fwupgradedialog.cpp.

                                                   {
     event->ignore();
 }

int FwUpgradeDialog::exec ( )

Definition at line 107 of file fwupgradedialog.cpp.

References Ui_FwUpgradeDialog::actionButton, blob, Ui_FwUpgradeDialog::cancelButton, KbFirmware::dataForBoard(), DIALOG_HEIGHT_MAX(), DIALOG_WIDTH, evLoop, exitSuccess, Kb::features, kb, Ui_FwUpgradeDialog::newLabel, Ui_FwUpgradeDialog::progressBar, saveBlob(), Ui_FwUpgradeDialog::statusLabel, ui, and verifyFw().

Referenced by KbWidget::on_fwUpdButton_clicked().

                          {
     QString features = kb->features;
     if(!blob.isEmpty()){
         // If a blob was already specified, check its version and validity
         float newV = verifyFw(blob, features);
         if(newV == 0.f){
             QMessageBox::warning(parentWidget(), "Error", "<center>Not a valid firmware for this device.</center>");
             return QDialog::Rejected;
         }
         ui->newLabel->setText(QString::number(newV, 'f', 2));
     } else {
         // Download a new blob file
         ui->progressBar->show();
         ui->cancelButton->setEnabled(false);
         ui->actionButton->setEnabled(false);
         show();
         // This can take a while
         blob = KbFirmware::dataForBoard(features);
         // Check validity
         float newV = verifyFw(blob, features);
         if(newV == 0.f){
             hide();
             QMessageBox::warning(parentWidget(), "Error", "<center>There was a problem with the downloaded file.<br />Please try again later.</center>");
             return QDialog::Rejected;
         }
     }
     // Save temporary file
     if(saveBlob().isEmpty()){
         hide();
         QMessageBox::warning(parentWidget(), "Error", "<center>Unable to save temporary file.</center>");
         return QDialog::Rejected;
     }
     // Set up UI
     ui->progressBar->setValue(0);
     ui->progressBar->setMaximum(1);
     ui->progressBar->setTextVisible(false);
     ui->statusLabel->setText("Ready to install new firmware.<br /><br /><b>Disclaimer:</b> ckb is not endorsed by Corsair. This is <i>unlikely</i> to brick your device, but I accept no responsibility if it does. If you're paranoid, update from Windows.");
     ui->cancelButton->setEnabled(true);
     ui->actionButton->setEnabled(true);
     setFixedSize(DIALOG_WIDTH, DIALOG_HEIGHT_MAX);
     show();
     // Run modal event loop
     evLoop = new QEventLoop(this);
     evLoop->exec();
     delete evLoop;
     hide();
     return exitSuccess ? QDialog::Accepted : QDialog::Rejected;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void FwUpgradeDialog::fwUpdateFinished ( bool succeeded )

privateslot

Definition at line 170 of file fwupgradedialog.cpp.

References Ui_FwUpgradeDialog::actionButton, cleanBlob(), evLoop, Ui_FwUpgradeDialog::progressBar, quit(), Ui_FwUpgradeDialog::statusLabel, and ui.

Referenced by FwUpgradeDialog(), and removeDev().

                                                     {
     cleanBlob();
     if(succeeded)
         ui->statusLabel->setText("Update successful!");
     else
         ui->statusLabel->setText("Update failed.");
     ui->actionButton->setText("OK");
     ui->actionButton->setEnabled(true);
     ui->progressBar->setMaximum(1);
     ui->progressBar->setValue(1);
     // Exit after 10s
     if(evLoop)
         QTimer::singleShot(10000, evLoop, SLOT(quit()));
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void FwUpgradeDialog::fwUpdateProgress	(	int	current,
		int	total
	)

privateslot

Definition at line 163 of file fwupgradedialog.cpp.

References Ui_FwUpgradeDialog::progressBar, and ui.

Referenced by FwUpgradeDialog().

                                                             {
     if(current > 0 && total > 0){
         ui->progressBar->setMaximum(total);
         ui->progressBar->setValue(current);
     }
 }

Here is the caller graph for this function:

void FwUpgradeDialog::on_actionButton_clicked ( )

privateslot

Definition at line 191 of file fwupgradedialog.cpp.

References Ui_FwUpgradeDialog::actionButton, Ui_FwUpgradeDialog::cancelButton, DIALOG_HEIGHT_MIN, DIALOG_WIDTH, evLoop, Kb::fwUpdate(), kb, Ui_FwUpgradeDialog::progressBar, savePath, Ui_FwUpgradeDialog::statusLabel, and ui.

                                              {
     if(!savePath.isEmpty() && kb){
         // Start upgrade
         setFixedSize(DIALOG_WIDTH, DIALOG_HEIGHT_MIN);
         ui->progressBar->show();
         ui->progressBar->setValue(0);
         ui->progressBar->setMaximum(0);
         ui->progressBar->setTextVisible(true);
         ui->cancelButton->hide();
         ui->actionButton->setEnabled(false);
         ui->actionButton->setText("Please wait");
         ui->statusLabel->setText("Installing firmware...");
         kb->fwUpdate(savePath);
     } else {
         // Finished, close dialog.
         if(evLoop)
             evLoop->quit();
     }
 }

Here is the call graph for this function:

void FwUpgradeDialog::on_cancelButton_clicked ( )

privateslot

Definition at line 185 of file fwupgradedialog.cpp.

References evLoop, and exitSuccess.

                                              {
     exitSuccess = false;
     if(evLoop)
         evLoop->quit();
 }

void FwUpgradeDialog::removeDev ( )

privateslot

Definition at line 156 of file fwupgradedialog.cpp.

References fwUpdateFinished(), kb, and savePath.

Referenced by FwUpgradeDialog().

                                {
     kb = 0;
     // Assume success if upgrade in progress
     if(!savePath.isEmpty())
         fwUpdateFinished(true);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

const QString & FwUpgradeDialog::saveBlob ( )

private

Definition at line 57 of file fwupgradedialog.cpp.

References blob, and savePath.

Referenced by exec().

                                         {
     if(!savePath.isEmpty())
         return savePath;
     QDir tmp = QDir::temp();
     qint64 pid = QCoreApplication::applicationPid();
     QString path = tmp.absoluteFilePath(QString("ckb-%1-fwblob.bin").arg(pid));
     QFile output(path);
     if(!output.open(QIODevice::WriteOnly)){
         return savePath;
     }
     if(!output.write(blob)){
         output.close();
         tmp.remove(path);
         return savePath;
     }
     output.close();
     savePath = path;
     return savePath;
 }
