#include <src/ckb/mainwindow.h>

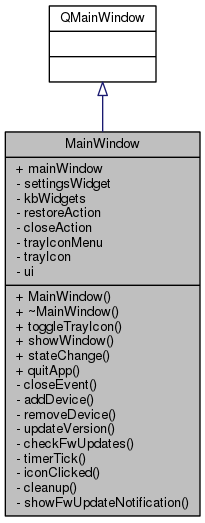

Inheritance diagram for MainWindow:

Collaboration diagram for MainWindow:

Public Slots
void	showWindow ()

void	stateChange (Qt::ApplicationState state)

void	quitApp ()

Public Member Functions
	MainWindow (QWidget *parent=0)

	~MainWindow ()

void	toggleTrayIcon (bool visible)

Static Public Attributes
static MainWindow *	mainWindow = 0

Private Slots
void	addDevice (Kb *device)

void	removeDevice (Kb *device)

void	updateVersion ()

void	checkFwUpdates ()

void	timerTick ()

void	iconClicked (QSystemTrayIcon::ActivationReason reason)

void	cleanup ()

void	showFwUpdateNotification (QWidget *widget, float version)

Private Member Functions
void	closeEvent (QCloseEvent *event)

Private Attributes
SettingsWidget *	settingsWidget

QList< KbWidget * >	kbWidgets

QAction *	restoreAction

QAction *	closeAction

QMenu *	trayIconMenu

QSystemTrayIcon *	trayIcon

Ui::MainWindow *	ui

Detailed Description

Definition at line 27 of file mainwindow.h.

Constructor & Destructor Documentation

MainWindow::MainWindow ( QWidget * parent = 0 )

explicit

Definition at line 35 of file mainwindow.cpp.

References Ui_MainWindow::actionExit, addDevice(), cleanup(), closeAction, configLabel, CkbSettings::get(), iconClicked(), KbManager::init(), KbManager::kbManager(), mainWindow, quitApp(), removeDevice(), restoreAction, KbManager::scanTimer(), settingsWidget, Ui_MainWindow::setupUi(), SettingsWidget::setVersion(), showWindow(), stateChange(), Ui_MainWindow::tabWidget, timerTick(), toggleTrayIcon(), trayIcon, trayIconMenu, ui, and updateVersion().

                                       :
     QMainWindow(parent),
     ui(new Ui::MainWindow)
 {
     ui->setupUi(this);
     mainWindow = this;

     // Start device manager
     KbManager::init(CKB_VERSION_STR);
     connect(KbManager::kbManager(), SIGNAL(kbConnected(Kb*)), this, SLOT(addDevice(Kb*)));
     connect(KbManager::kbManager(), SIGNAL(kbDisconnected(Kb*)), this, SLOT(removeDevice(Kb*)));
     connect(KbManager::kbManager(), SIGNAL(versionUpdated()), this, SLOT(updateVersion()));
     connect(KbManager::scanTimer(), SIGNAL(timeout()), this, SLOT(timerTick()));

     // Set up tray icon
     restoreAction = new QAction(tr("Restore"), this);
     closeAction = new QAction(tr("Quit ckb"), this);
 #ifdef USE_LIBAPPINDICATOR
     QString desktop = std::getenv("XDG_CURRENT_DESKTOP");
     unityDesktop = (desktop.toLower() == "unity");

     if(unityDesktop){
         trayIcon = 0;

         indicatorMenu = gtk_menu_new();
         indicatorMenuRestoreItem = gtk_menu_item_new_with_label("Restore");
         indicatorMenuQuitItem = gtk_menu_item_new_with_label("Quit ckb");

         gtk_menu_shell_append(GTK_MENU_SHELL(indicatorMenu), indicatorMenuRestoreItem);
         gtk_menu_shell_append(GTK_MENU_SHELL(indicatorMenu), indicatorMenuQuitItem);

         g_signal_connect(indicatorMenuQuitItem, "activate",
             G_CALLBACK(quitIndicator), this);
         g_signal_connect(indicatorMenuRestoreItem, "activate",
             G_CALLBACK(restoreIndicator), this);

         gtk_widget_show(indicatorMenuRestoreItem);
         gtk_widget_show(indicatorMenuQuitItem);

         indicator = app_indicator_new("ckb", "indicator-messages", APP_INDICATOR_CATEGORY_APPLICATION_STATUS);

         app_indicator_set_status(indicator, APP_INDICATOR_STATUS_ACTIVE);
         app_indicator_set_menu(indicator, GTK_MENU(indicatorMenu));
         app_indicator_set_icon(indicator, "ckb");
     } else
 #endif // USE_LIBAPPINDICATOR
     {
         trayIconMenu = new QMenu(this);
         trayIconMenu->addAction(restoreAction);
         trayIconMenu->addAction(closeAction);
         trayIcon = new QSystemTrayIcon(QIcon(":/img/ckb-logo.png"), this);
         trayIcon->setContextMenu(trayIconMenu);
         connect(trayIcon, SIGNAL(activated(QSystemTrayIcon::ActivationReason)), this, SLOT(iconClicked(QSystemTrayIcon::ActivationReason)));
      }
      toggleTrayIcon(!CkbSettings::get("Program/SuppressTrayIcon").toBool());

 #ifdef Q_OS_MACX
     // Make a custom "Close" menu action for OSX, as the default one brings up the "still running" popup unnecessarily
     QMenuBar* menuBar = new QMenuBar(this);
     setMenuBar(menuBar);
     this->menuBar()->addMenu("ckb")->addAction(closeAction);
 #else
     // On linux, add a handler for Ctrl+Q
     new QShortcut(QKeySequence("Ctrl+Q"), this, SLOT(quitApp()));
 #endif

     connect(ui->actionExit, SIGNAL(triggered()), this, SLOT(quitApp()));
     connect(closeAction, SIGNAL(triggered()), this, SLOT(quitApp()));
     connect(restoreAction, SIGNAL(triggered()), this, SLOT(showWindow()));
     connect(qApp, SIGNAL(applicationStateChanged(Qt::ApplicationState)), this, SLOT(stateChange(Qt::ApplicationState)));

     connect(qApp, SIGNAL(aboutToQuit()), this, SLOT(cleanup()));

     ui->tabWidget->addTab(settingsWidget = new SettingsWidget(this), configLabel);
     settingsWidget->setVersion("ckb-next " CKB_VERSION_STR);
 }

Here is the call graph for this function:

MainWindow::~MainWindow ( )

Definition at line 303 of file mainwindow.cpp.

References cleanup(), and ui.

                        {
     cleanup();
     delete ui;
 }

Here is the call graph for this function:

Member Function Documentation

void MainWindow::addDevice ( Kb * device )

privateslot

Definition at line 121 of file mainwindow.cpp.

References KbWidget::device, kbWidgets, KbWidget::name(), Ui_MainWindow::tabWidget, ui, and updateVersion().

Referenced by MainWindow().

                                     {
     // Connected already?
     foreach(KbWidget* w, kbWidgets){
         if(w->device == device)
             return;
     }
     // Add the keyboard
     KbWidget* widget = new KbWidget(this, device);
     kbWidgets.append(widget);
     // Add to tabber; switch to this device if on the settings screen
     int count = ui->tabWidget->count();
     ui->tabWidget->insertTab(count - 1, widget, widget->name());
     if(ui->tabWidget->currentIndex() == count)
         ui->tabWidget->setCurrentIndex(count - 1);
     // Update connected device count
     updateVersion();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::checkFwUpdates ( )

privateslot

Definition at line 172 of file mainwindow.cpp.

References KbWidget::device, Kb::features, Kb::firmware, KbWidget::hasShownNewFW, kbWidgets, mainWindow, KbWidget::updateFwButton(), and KbFirmware::versionForBoard().

Referenced by timerTick().

                                {
     if(!mainWindow->isVisible())
         return;
     foreach(KbWidget* w, kbWidgets){
         // Display firmware upgrade notification if a new version is available
         float version = KbFirmware::versionForBoard(w->device->features);
         if(version > w->device->firmware.toFloat()){
             if(w->hasShownNewFW)
                 continue;
             w->hasShownNewFW = true;
             w->updateFwButton();
             // Don't run this method here because it will lock up the timer and prevent devices from working properly
             // Use a queued invocation instead
             metaObject()->invokeMethod(this, "showFwUpdateNotification", Qt::QueuedConnection, Q_ARG(QWidget*, w), Q_ARG(float, version));
             // Don't display more than one of these at once
             return;
         }
     }
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::cleanup ( )

privateslot

Definition at line 295 of file mainwindow.cpp.

References CkbSettings::cleanUp(), kbWidgets, and KbManager::stop().

Referenced by MainWindow(), and ~MainWindow().

                         {
     foreach(KbWidget* w, kbWidgets)
         delete w;
     kbWidgets.clear();
     KbManager::stop();
     CkbSettings::cleanUp();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::closeEvent ( QCloseEvent * event )

private

Definition at line 209 of file mainwindow.cpp.

References CkbSettings::get(), and CkbSettings::set().

                                              {
     // If the window is hidden already or the event is non-spontaneous (can happen on OSX when using the Quit menu), accept it and close
     if(!event->spontaneous() || isHidden()){
         event->accept();
         return;
     }
     if(!CkbSettings::get("Popups/BGWarning").toBool()){
         QMessageBox::information(this, "ckb", "ckb will still run in the background.\nTo close it, choose Exit from the tray menu\nor click \"Quit ckb\" on the Settings screen.");
         CkbSettings::set("Popups/BGWarning", true);
     }
     hide();
     event->ignore();
 }

Here is the call graph for this function:

void MainWindow::iconClicked ( QSystemTrayIcon::ActivationReason reason )

privateslot

Definition at line 257 of file mainwindow.cpp.

References showWindow().

Referenced by MainWindow().

                                                                   {
     // On Linux, hide/show the app when the tray icon is clicked
     // On OSX this just shows the menu
 #ifndef Q_OS_MACX
     if(reason == QSystemTrayIcon::DoubleClick || reason == QSystemTrayIcon::Trigger){
         if(isVisible())
             hide();
         else
             showWindow();
     }
 #endif
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::quitApp ( )

slot

Definition at line 291 of file mainwindow.cpp.

Referenced by MainWindow().

                         {
     qApp->quit();
 }

Here is the caller graph for this function:

void MainWindow::removeDevice ( Kb * device )

privateslot

Definition at line 139 of file mainwindow.cpp.

References KbWidget::device, kbWidgets, Ui_MainWindow::tabWidget, ui, and updateVersion().

Referenced by MainWindow().

                                        {
     foreach(KbWidget* w, kbWidgets){
         // Remove this device from the UI
         if(w->device == device){
             int i = kbWidgets.indexOf(w);
             ui->tabWidget->removeTab(i);
             kbWidgets.removeAt(i);
             w->deleteLater();
         }
     }
     // Update connected device count
     updateVersion();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::showFwUpdateNotification	(	QWidget *	widget,
		float	version
	)

privateslot

Definition at line 192 of file mainwindow.cpp.

References KbWidget::device, kbWidgets, KbWidget::showFwUpdate(), KbWidget::showLastTab(), showWindow(), Ui_MainWindow::tabWidget, ui, and Kb::usbModel.

                                                                        {
     static bool isShowing = false;
     if(isShowing)
         return;
     isShowing = true;
     showWindow();
     KbWidget* w = (KbWidget*)widget;
     // Ask for update
     if(QMessageBox::information(this, "Firmware update", tr("A new firmware is available for your %1 (v%2)\nWould you like to install it now?").arg(w->device->usbModel, QString::number(version, 'f', 2)), QMessageBox::StandardButtons(QMessageBox::Yes | QMessageBox::No), QMessageBox::Yes) == QMessageBox::Yes){
         // If accepted, switch to firmware tab and bring up update window
         w->showLastTab();
         ui->tabWidget->setCurrentIndex(kbWidgets.indexOf(w));
         w->showFwUpdate();
     }
     isShowing = false;
 }

Here is the call graph for this function:

void MainWindow::showWindow ( )

slot

Definition at line 270 of file mainwindow.cpp.

Referenced by iconClicked(), MainWindow(), showFwUpdateNotification(), stateChange(), and timerTick().

                            {
     showNormal();
     raise();
     activateWindow();
 }

Here is the caller graph for this function:

void MainWindow::stateChange ( Qt::ApplicationState state )

slot

Definition at line 276 of file mainwindow.cpp.

References showWindow().

Referenced by MainWindow().

                                                     {
     // On OSX it's possible for the app to be brought to the foreground without the window actually reappearing.
     // We want to make sure it's shown when this happens.
 #ifdef Q_OS_MAC
     static quint64 lastStateChange = 0;
     quint64 now = QDateTime::currentMSecsSinceEpoch();
     if(state == Qt::ApplicationActive){
         // This happens once at startup so ignore it. Also don't allow it to be called more than once every 2s.
         if(lastStateChange != 0 && now >= lastStateChange + 2 * 1000)
             showWindow();
         lastStateChange = now;
     }
 #endif
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::timerTick ( )

privateslot

Definition at line 223 of file mainwindow.cpp.

References appShare, checkFwUpdates(), KbFirmware::checkUpdates(), CkbSettings::get(), SettingsWidget::pollUpdates(), settingsWidget, and showWindow().

Referenced by MainWindow().

                           {
     // Check shared memory for changes
     if(appShare.lock()){
         void* data = appShare.data();
         QStringList commands = QString((const char*)data).split("\n");
         // Restore PID, remove all other data
         snprintf((char*)appShare.data(), appShare.size(), "PID %ld", (long)getpid());
         appShare.unlock();
         // Parse commands
         foreach(const QString& line, commands){
             // Old ckb option line - bring application to foreground
             if(line == "Open")
                 showWindow();
             if(line.startsWith("Option ")){
                 // New ckb option line
                 QString option = line.split(" ")[1];
                 if(option == "Open")
                     // Bring to foreground
                     showWindow();
                 else if(option == "Close")
                     // Quit application
                     qApp->quit();
             }
         }
     }
     // Check for firmware updates (when appropriate)
     if(!CkbSettings::get("Program/DisableAutoFWCheck").toBool()){
         KbFirmware::checkUpdates();
         checkFwUpdates();
     }
     // Poll for setting updates
     settingsWidget->pollUpdates();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MainWindow::toggleTrayIcon ( bool visible )

Definition at line 112 of file mainwindow.cpp.

References trayIcon.

Referenced by MainWindow(), and ExtraSettingsWidget::on_trayBox_clicked().

                                             {
 #ifdef USE_LIBAPPINDICATOR
     if(unityDesktop)
         app_indicator_set_status(indicator, visible ? APP_INDICATOR_STATUS_ACTIVE : APP_INDICATOR_STATUS_PASSIVE);
     else
 #endif // USE_LIBAPPINDICATOR
         trayIcon->setVisible(visible);
 }

Here is the caller graph for this function:

void MainWindow::updateVersion ( )

privateslot

Definition at line 153 of file mainwindow.cpp.

References KbManager::ckbDaemonVersion(), KbManager::ckbDaemonVersionF(), KbManager::ckbGuiVersionF(), DAEMON_UNAVAILABLE_STR, kbWidgets, SettingsWidget::setStatus(), and settingsWidget.

Referenced by addDevice(), MainWindow(), and removeDevice().

                               {
     QString daemonVersion = KbManager::ckbDaemonVersion();
     if(daemonVersion == DAEMON_UNAVAILABLE_STR){
         settingsWidget->setStatus("Driver inactive");
         return;
     }
     int count = kbWidgets.count();
     // Warn if the daemon version doesn't match the GUI
     QString daemonWarning;
     if(daemonVersion != CKB_VERSION_STR)
         daemonWarning = "<br /><br /><b>Warning:</b> Driver version mismatch (" + daemonVersion + "). Please upgrade ckb" + QString(KbManager::ckbDaemonVersionF() > KbManager::ckbGuiVersionF() ? "" : "-daemon") + ". If the problem persists, try rebooting.";
     if(count == 0)
         settingsWidget->setStatus("No devices connected" + daemonWarning);
     else if(count == 1)
         settingsWidget->setStatus("1 device connected" + daemonWarning);
     else
         settingsWidget->setStatus(QString("%1 devices connected").arg(count) + daemonWarning);
 }
