KeyAction Class Reference

#include <src/ckb/keyaction.h>

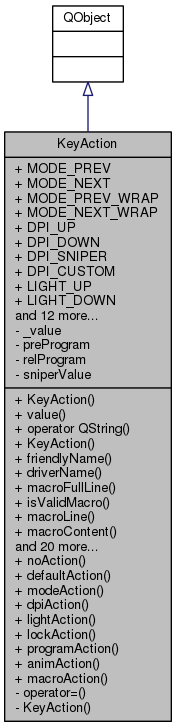

Inheritance diagram for KeyAction:

Collaboration diagram for KeyAction:

Public Types
enum	Type { UNBOUND, NORMAL, SPECIAL }

Public Member Functions
	KeyAction (const QString &action, QObject *parent=0)
QString	value () const
	operator QString () const
	KeyAction (QObject *parent=0)
QString	friendlyName (const KeyMap &map) const
QString	driverName () const
QString	macroFullLine () const
	macroFullLine If a macro command and a macro definition exists for the given key, returns the complete string except the leading "$" (the $ may confuse some caller). More...
bool	isValidMacro () const
	isValidMacro checks whether a keyAction contains a valid macro. This is done easily: If the macro action starts with $macro: and has five elements, delimited by ":", we may assume, that is a structural correct macro action. If it has 4 entries only, it is an older definition and ok also. More...
QStringList	macroLine () const
	macroLine returns all interresting content for a macro definition. More...
QString	macroContent () const
	macroContent returns the macro key definition only (the second part of the macro action). More...
QString	macroTiming () const
	macroTiming returns the macro key definition with original timing infos (the fifth and up to now last part of the macro action). If the implementation does not know anything about delays and has no 5th part, return first part. More...
void	macroDisplay ()
	Debug output for invalid macro Definitions. More...
Type	type () const
bool	isUnbound () const
bool	isNormal () const
bool	isSpecial () const
bool	isMedia () const
bool	isProgram () const
bool	isAnim () const
bool	isMacro () const
bool	isDPI () const
bool	isMouse () const
QString	specialInfo (int &parameter) const
int	programInfo (QString &onPress, QString &onRelease) const
int	dpiInfo (QPoint &custom) const
QUuid	animInfo (bool &onlyOnce, bool &stopOnRelease) const
void	keyEvent (KbBind *bind, bool down)
void	keyRelease (KbBind *bind)
void	adjustDisplay ()
	~KeyAction ()

Static Public Member Functions
static QString	noAction ()
static QString	defaultAction (const QString &key)
static QString	modeAction (int mode)
static QString	dpiAction (int level, int customX=0, int customY=0)
static QString	lightAction (int type=LIGHT_UP_WRAP)
static QString	lockAction (int type=LOCK_TOGGLE)
static QString	programAction (const QString &onPress, const QString &onRelease, int stop)
static QString	animAction (const QUuid &guid, bool onlyOnce, bool stopOnRelease)
static QString	macroAction (QString macroDef)
	well documented in cpp file More...

Static Public Attributes
static const int	MODE_PREV = -2
static const int	MODE_NEXT = -1
static const int	MODE_PREV_WRAP = -4
static const int	MODE_NEXT_WRAP = -3
static const int	DPI_UP = -2
static const int	DPI_DOWN = -1
static const int	DPI_SNIPER = 0
static const int	DPI_CUSTOM = 6
static const int	LIGHT_UP = 0
static const int	LIGHT_DOWN = 1
static const int	LIGHT_UP_WRAP = 2
static const int	LIGHT_DOWN_WRAP = 3
static const int	LOCK_TOGGLE = 0
static const int	LOCK_ON = 1
static const int	LOCK_OFF = 2
static const int	PROGRAM_PR_MULTI = 0x04
static const int	PROGRAM_PR_INDEF = 0x00
static const int	PROGRAM_PR_KRSTOP = 0x01
static const int	PROGRAM_PR_KPSTOP = 0x02
static const int	PROGRAM_RE_MULTI = 0x40
static const int	PROGRAM_RE_INDEF = 0x00
static const int	PROGRAM_RE_KPSTOP = 0x20

Private Member Functions
void	operator= (const KeyAction &rhs)
	ccMSC: Don't copy key actions (the old one needs to be deleted first) frickler24: statement left as described, but copying is done in KbBind copy constructor More...
	KeyAction (const KeyAction &rhs)

Private Attributes
QString	_value
QProcess *	preProgram
QProcess *	relProgram
quint64	sniperValue

Detailed Description

Definition at line 13 of file keyaction.h.

Member Enumeration Documentation

enum KeyAction::Type

Enumerator
UNBOUND
NORMAL
SPECIAL

Definition at line 145 of file keyaction.h.

              {
        UNBOUND,
        NORMAL,
        SPECIAL,
    };

Constructor & Destructor Documentation

KeyAction::KeyAction	(	const QString &	action,
		QObject *	parent = 0
	)

Definition at line 22 of file keyaction.cpp.

    : QObject(parent), _value(action), preProgram(0), relProgram(0), sniperValue(0)
{
}

KeyAction::KeyAction ( QObject *  parent = 0 )

explicit

Definition at line 27 of file keyaction.cpp.

    : QObject(parent), _value(""), preProgram(0), relProgram(0), sniperValue(0)
{
}

KeyAction::~KeyAction

(

)

Definition at line 32 of file keyaction.cpp.

References preProgram, and relProgram.

                     {
    // Clean up processes
    if(preProgram){
        preProgram->kill();
        delete preProgram;
    }
    if(relProgram){
        relProgram->kill();
        delete relProgram;
    }
}

KeyAction::KeyAction ( const KeyAction &  rhs )

inlineprivate

Definition at line 186 of file keyaction.h.

: QObject() {}

Member Function Documentation

void KeyAction::adjustDisplay

(

)

Definition at line 445 of file keyaction.cpp.

Referenced by keyEvent().

                             {
#ifdef USE_LIBX11
    // Try to get the current display from the X server
    char* display_name = XDisplayName(NULL);
    if(!display_name)
        return;
    Display* display = XOpenDisplay(display_name);
    if(!display)
        return;
    char* display_string = DisplayString(display);
    if(!display_string || strlen(display_string) == 0){
        XCloseDisplay(display);
        return;
    }
    size_t envstr_size = strlen(display_string) + 4;
    char* envstr = new char[envstr_size];
    strncpy(envstr, display_string, envstr_size);
    envstr[envstr_size - 1] = 0;

    Window root_window = XRootWindow(display, DefaultScreen(display));
    Window root_window_ret, child_window_ret, window;
    XWindowAttributes attr;
    int root_x, root_y, win_x, win_y;
    unsigned int mask_ret;

    // Find the screen which currently has the mouse
    XQueryPointer(display, root_window, &root_window_ret, &child_window_ret, &root_x, &root_y, &win_x, &win_y, &mask_ret);
    if(child_window_ret == (Window)NULL)
        window = root_window_ret;
    else
        window = child_window_ret;
    XGetWindowAttributes(display, window,  &attr);

    char* ptr = strchr(envstr, ':');
    if(ptr){
        ptr = strchr(ptr, '.');
        if(ptr)
            *ptr = '\0';
        char buf[16];
        snprintf(buf, sizeof(buf), ".%i", XScreenNumberOfScreen(attr.screen));
        strncat(envstr, buf, envstr_size - 1 - strlen(envstr));

        // Update environment variable
        setenv("DISPLAY", envstr, 1);
    }

    delete[] envstr;
    XCloseDisplay(display);
#endif
}

Here is the caller graph for this function:

QString KeyAction::animAction ( const QUuid &  guid, bool  onlyOnce, bool  stopOnRelease  )

static

Definition at line 175 of file keyaction.cpp.

References ANIM_KRSTOP, and ANIM_ONCE.

Referenced by RebindWidget::applyChanges().

                                                                                 {
    int flags = (onlyOnce ? ANIM_ONCE : 0) | (stopOnRelease ? ANIM_KRSTOP : 0);
    return "$anim:" + guid.toString() + QString("+%1").arg(flags);
}

Here is the caller graph for this function:

QUuid KeyAction::animInfo	(	bool &	onlyOnce,
		bool &	stopOnRelease
	)		const

Definition at line 216 of file keyaction.cpp.

References _value, ANIM_KRSTOP, ANIM_ONCE, and isAnim().

Referenced by keyEvent(), and RebindWidget::setSelection().

                                                                   {
    if(!isAnim())
        return QUuid();
    QString param = _value.mid(6);
    QStringList split = param.split("+");
    if(split.length() < 2)
        return QUuid();
    QUuid id = split[0];
    int flags = split[1].toInt();
    onlyOnce = !!(flags & ANIM_ONCE);
    stopOnRelease = !!(flags & ANIM_KRSTOP);
    return id;
}

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::defaultAction ( const QString &  key )

static

Definition at line 44 of file keyaction.cpp.

Referenced by KbBind::bindAction(), KbBind::defaultAction(), and KbBind::save().

                                                  {
    // G1-G18 are unbound by default
    if(key.length() >= 2 && key[0] == 'g'
        && ((key.length() == 2 && key[1] >= '0' && key[1] <= '9')
        || (key.length() == 3 && key[1] == '1' && key[2] >= '0' && key[2] <= '8')))
        return "";
    // So are thumbgrid buttons
    if(key.startsWith("thumb"))
        return "";
    // TODO: default action for MR
    if(key == "mr")
        return "";
    // M1-M3 switch modes
    if(key == "m1")
        return "$mode:0";
    if(key == "m2")
        return "$mode:1";
    if(key == "m3")
        return "$mode:2";
    // Brightness and Win Lock are their own functions
    if(key == "light")
        return "$light:2";
    if(key == "lock")
        return "$lock:0";
    // DPI buttons
    if(key == "dpiup")
        return "$dpi:-2";
    if(key == "dpidn")
        return "$dpi:-1";
    if(key == "sniper")
        return "$dpi:0";
    // Everything else is a standard keypress
    return key;
}

Here is the caller graph for this function:

QString KeyAction::dpiAction ( int  level, int  customX = 0, int  customY = 0  )

static

Definition at line 153 of file keyaction.cpp.

References DPI_CUSTOM.

Referenced by RebindWidget::applyChanges().

                                                               {
    QString action = tr("$dpi:%1").arg(level);
    if(level == DPI_CUSTOM)
        action += tr("+%1+%2").arg(customX).arg(customY);
    return action;
}

Here is the caller graph for this function:

int KeyAction::dpiInfo

(

QPoint &

custom

)

const

Definition at line 202 of file keyaction.cpp.

References _value, DPI_CUSTOM, and isDPI().

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

                                           {
    if(!isDPI())
        return 0;
    QString param = _value.mid(5);
    QStringList lxy = param.split("+");
    int level = lxy[0].toInt();
    if(level == DPI_CUSTOM){
        if(lxy.length() != 3)
            return 0;
        custom = QPoint(lxy[1].toInt(), lxy[2].toInt());
    }
    return level;
}

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::driverName

(

)

const

Definition at line 230 of file keyaction.cpp.

References _value, and isSpecial().

Referenced by KbBind::update().

                                    {
    if(isSpecial())
        return "";
    return _value;
}

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::friendlyName

(

const KeyMap &

map

)

const

Definition at line 79 of file keyaction.cpp.

References _value, DPI_CUSTOM, DPI_DOWN, DPI_SNIPER, DPI_UP, dpiInfo(), KeyMap::friendlyName(), KeyMap::layout(), LIGHT_DOWN, LIGHT_DOWN_WRAP, LIGHT_UP, LIGHT_UP_WRAP, LOCK_OFF, LOCK_ON, LOCK_TOGGLE, MODE_NEXT, MODE_NEXT_WRAP, MODE_PREV, and MODE_PREV_WRAP.

                                                       {
    if(_value.isEmpty())
        return "Unbound";
    QStringList parts = _value.split(":");
    QString prefix = parts[0];
    if(parts.length() < 2){
        KeyMap::Layout layout = map.layout();
        QString name = KeyMap::friendlyName(_value, layout);
        if(name.isEmpty())
            return "(Unknown)";
        return name;
    }
    int suffix = parts[1].toInt();
    if(prefix == "$mode"){
        switch(suffix){
        case MODE_PREV:
        case MODE_PREV_WRAP:
            return "Switch to previous mode";
        case MODE_NEXT:
        case MODE_NEXT_WRAP:
            return "Switch to next mode";
        default:
            return tr("Switch to mode %1").arg(suffix + 1);
        }
    } else if(prefix == "$dpi"){
        // Split off custom parameters (if any)
        int level = parts[1].split("+")[0].toInt();
        switch(level){
        case DPI_UP:
            return "DPI up";
        case DPI_DOWN:
            return "DPI down";
        case DPI_SNIPER:
            return "Sniper";
        case DPI_CUSTOM:{
            QPoint xy;
            dpiInfo(xy);
            return tr("DPI: %1, %2").arg(xy.x()).arg(xy.y());
        }
        default:
            return tr("DPI stage %1").arg(level);
        }
    } else if(prefix == "$light"){
        switch(suffix){
        case LIGHT_UP:
        case LIGHT_UP_WRAP:
            return "Brightness up";
        case LIGHT_DOWN:
        case LIGHT_DOWN_WRAP:
            return "Brightness down";
        }
    } else if(prefix == "$lock"){
        switch(suffix){
        case LOCK_TOGGLE:
            return "Toggle Windows lock";
        case LOCK_ON:
            return "Windows lock on";
        case LOCK_OFF:
            return "Windows lock off";
        }
    } else if(prefix == "$anim"){
        return "Start animation";
    } else if(prefix == "$program"){
        return "Launch program";
    } else if(prefix == "$macro"){
        return "Send G-key macro";
    }
    return "(Unknown)";
}

Here is the call graph for this function:

bool KeyAction::isAnim ( ) const

inline

Definition at line 158 of file keyaction.h.

References _value.

Referenced by animInfo(), and RebindWidget::setSelection().

{ return _value.startsWith("$anim:"); }

Here is the caller graph for this function:

bool KeyAction::isDPI ( ) const

inline

Definition at line 161 of file keyaction.h.

References _value.

Referenced by dpiInfo(), isMouse(), and RebindWidget::setSelection().

{ return _value.startsWith("$dpi:"); }

Here is the caller graph for this function:

bool KeyAction::isMacro ( ) const

inline

Definition at line 159 of file keyaction.h.

References _value.

Referenced by isValidMacro(), macroDisplay(), and macroFullLine().

{ return _value.startsWith("$macro:"); }

Here is the caller graph for this function:

bool KeyAction::isMedia ( ) const

inline

Definition at line 155 of file keyaction.h.

References _value.

{ return _value == "mute" || _value == "volup" || _value == "voldn" || _value == "stop" || _value == "prev" || _value == "play" || _value == "next"; }

bool KeyAction::isMouse ( ) const

inline

Definition at line 162 of file keyaction.h.

References _value, isDPI(), and isNormal().

Referenced by RebindWidget::setSelection().

{ return (isNormal() && (_value.startsWith("mouse") || _value.startsWith("wheel"))) || isDPI(); }

Here is the call graph for this function:

Here is the caller graph for this function:

bool KeyAction::isNormal ( ) const

inline

Definition at line 152 of file keyaction.h.

References NORMAL, and type().

Referenced by isMouse(), RebindWidget::setBind(), and RebindWidget::setSelection().

{ return type() == NORMAL; }

Here is the call graph for this function:

Here is the caller graph for this function:

bool KeyAction::isProgram ( ) const

inline

Definition at line 157 of file keyaction.h.

References _value.

Referenced by programInfo(), and RebindWidget::setSelection().

{ return _value.startsWith("$program:"); }

Here is the caller graph for this function:

bool KeyAction::isSpecial ( ) const

inline

Definition at line 153 of file keyaction.h.

References SPECIAL, and type().

Referenced by driverName(), keyEvent(), and RebindWidget::setSelection().

{ return type() == SPECIAL; }

Here is the call graph for this function:

Here is the caller graph for this function:

bool KeyAction::isUnbound ( ) const

inline

Definition at line 151 of file keyaction.h.

References type(), and UNBOUND.

{ return type() == UNBOUND; }

Here is the call graph for this function:

bool KeyAction::isValidMacro ( ) const

inline

Returns

bool as true iff the macro definition contains all four elements.

Definition at line 55 of file keyaction.h.

References _value, and isMacro().

Referenced by macroContent(), macroDisplay(), macroLine(), macroTiming(), RebindWidget::setSelection(), and KbBind::update().

                                      {
        if (isMacro()) {
            QStringList ret;
            ret =_value.split(":");
            return ((ret.count() >= 4) && (ret.count() <= 5));
        } else {
            return false;
        }
    }

Here is the call graph for this function:

Here is the caller graph for this function:

void KeyAction::keyEvent	(	KbBind *	bind,
		bool	down
	)

Definition at line 236 of file keyaction.cpp.

References _value, adjustDisplay(), animInfo(), KbProfile::currentMode(), Kb::currentProfile(), KbBind::devParent(), KbLight::dimming(), KbPerf::dpi(), KbPerf::DPI_COUNT, DPI_CUSTOM, DPI_DOWN, DPI_SNIPER, DPI_UP, KbPerf::dpiDown(), dpiInfo(), KbPerf::dpiUp(), KbLight::findAnim(), KbProfile::indexOf(), KbAnim::isActive(), isSpecial(), KbBind::light(), LIGHT_DOWN, LIGHT_DOWN_WRAP, LIGHT_UP, LIGHT_UP_WRAP, LOCK_OFF, LOCK_ON, LOCK_TOGGLE, KbLight::MAX_DIM, MODE_NEXT, MODE_NEXT_WRAP, MODE_PREV, MODE_PREV_WRAP, KbProfile::modeCount(), KbProfile::modes(), KbBind::perf(), KbPerf::popDpi(), preProgram, PROGRAM_PR_KPSTOP, PROGRAM_PR_KRSTOP, PROGRAM_PR_MULTI, PROGRAM_RE_KPSTOP, PROGRAM_RE_MULTI, programInfo(), KbPerf::pushDpi(), KbPerf::pushSniper(), relProgram, Kb::setCurrentMode(), sniperValue, KbAnim::stop(), KbAnim::trigger(), and KbBind::winLock().

Referenced by KbBind::keyEvent().

                                               {
    // No need to respond to standard actions
    if(!isSpecial())
        return;
    QStringList parts = _value.split(":");
    if(parts.length() < 2)
        return;
    QString prefix = parts[0];
    int suffix = parts[1].toInt();
    if(prefix == "$mode"){
        if(!down)
            return;
        // Change mode
        Kb* device = bind->devParent();
        KbProfile* currentProfile = device->currentProfile();
        int mode = currentProfile->indexOf(currentProfile->currentMode());
        int modeCount = currentProfile->modeCount();
        switch(suffix){
        case MODE_PREV_WRAP:
            mode--;
            if(mode < 0)
                mode = modeCount - 1;
            break;
        case MODE_NEXT_WRAP:
            mode++;
            if(mode >= modeCount)
                mode = 0;
            break;
        case MODE_PREV:
            mode--;
            break;
        case MODE_NEXT:
            mode++;
            break;
        default:
            // Absolute
            mode = suffix;
            break;
        }
        if(mode < 0 || mode >= modeCount)
            return;
        device->setCurrentMode(currentProfile->modes()[mode]);
    } else if(prefix == "$dpi"){
        KbPerf* perf = bind->perf();
        int level = parts[1].split("+")[0].toInt();
        switch(level){
        case DPI_UP:
            if(!down)
                return;
            perf->dpiUp();
            break;
        case DPI_DOWN:
            if(!down)
                return;
            perf->dpiDown();
            break;
        case DPI_SNIPER:
            if(down)
                sniperValue = perf->pushSniper();
            else {
                perf->popDpi(sniperValue);
                sniperValue = 0;
            }
            break;
        case DPI_CUSTOM:{
            QPoint xy;
            dpiInfo(xy);
            if(xy.x() <= 0 || xy.y() <= 0)
                break;
            if(down)
                sniperValue = perf->pushDpi(xy);
            else {
                perf->popDpi(sniperValue);
                sniperValue = 0;
            }
            break;
        }
        default:
            if(level < 1 || level >= KbPerf::DPI_COUNT
                    || !down)
                return;
            perf->dpi(level);
            break;
        }
    } else if(prefix == "$light"){
        if(!down)
            return;
        // Change brightness
        KbLight* light = bind->light();
        int dim = light->dimming();
        switch(suffix){
        case LIGHT_UP:
            if(dim > 0)
                dim--;
            break;
        case LIGHT_DOWN:
            if(dim < KbLight::MAX_DIM)
                dim++;
            break;
        case LIGHT_UP_WRAP:
            dim--;
            if(dim < 0)
                dim = KbLight::MAX_DIM;
            break;
        case LIGHT_DOWN_WRAP:
            dim++;
            if(dim > KbLight::MAX_DIM)
                dim = 0;
            break;
        }
        light->dimming(dim);
    } else if(prefix == "$lock"){
        if(!down)
            return;
        // Change win lock
        switch(suffix){
        case LOCK_TOGGLE:
            bind->winLock(!bind->winLock());
            break;
        case LOCK_ON:
            bind->winLock(true);
            break;
        case LOCK_OFF:
            bind->winLock(false);
            break;
        }
    } else if(prefix == "$anim"){
        // Start animation
        bool onlyOnce = false, stopOnRelease = false;
        QUuid id = animInfo(onlyOnce, stopOnRelease);
        KbAnim* anim = bind->light()->findAnim(id);
        if(!anim)
            return;
        if(down){
            if(!onlyOnce || !anim->isActive())
                // If "only once" is enabled, don't start the animation when it's already running
                anim->trigger(QDateTime::currentMSecsSinceEpoch(), true);
        } else if(stopOnRelease){
            // Key released - stop animation
            anim->stop();
        }
    } else if(prefix == "$program"){
        // Launch program
        QString onPress, onRelease;
        int stop = programInfo(onPress, onRelease);
        // Stop running programs based on setting
        QProcess* process = 0;
        if(down){
            if(stop & PROGRAM_PR_KPSTOP){
                process = preProgram;
                if(process)
                    process->kill();
                process = 0;
            }
            if(stop & PROGRAM_RE_KPSTOP)
                process = relProgram;
        } else {
            if(stop & PROGRAM_PR_KRSTOP)
                process = preProgram;
        }
        if(process)
            process->kill();
        // Launch new process if requested
        QString& program = down ? onPress : onRelease;
        if(program.isEmpty())
            return;
        // Check if the program is running already. If so, don't start it again.
        process = down ? preProgram : relProgram;
        if(process){
            if(process->state() == QProcess::NotRunning)
                delete process;
            else
                return;
        }

        // Adjust the selected display.
        adjustDisplay();

        // Start the program. Wrap it around sh to parse arguments.
        if((down && (stop & PROGRAM_PR_MULTI))
                || (!down && (stop & PROGRAM_RE_MULTI))){
            // Multiple instances allowed? Start detached process
            QProcess::startDetached("sh", QStringList() << "-c" << program);
        } else {
            process = new QProcess(this);
            process->start("sh", QStringList() << "-c" << program);
            if(down)
                preProgram = process;
            else
                relProgram = process;
        }
    } else if (prefix == "$macro") {
        // Do nothing, because all work is done by the keyboard itself.
        // For now, there is no reason to react on G-key press or release.
        // If u find some reason, then here is the place for it.
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void KeyAction::keyRelease

(

KbBind *

bind

)

QString KeyAction::lightAction ( int  type = LIGHT_UP_WRAP )

static

Definition at line 160 of file keyaction.cpp.

Referenced by RebindWidget::applyChanges().

                                      {
    return QString("$light:%1").arg(type);
}

Here is the caller graph for this function:

QString KeyAction::lockAction ( int  type = LOCK_TOGGLE )

static

Definition at line 164 of file keyaction.cpp.

Referenced by RebindWidget::applyChanges().

                                     {
    return QString("$lock:%1").arg(type);
}

Here is the caller graph for this function:

QString KeyAction::macroAction ( QString  macroDef )

static

KeyAction::macroAction is called when applying changes on a macro definition. macroAction ist called while being in the macro pane and clicking Apply with something in the Macro Text Box. It tags that input with "$macro:" for further recognition.

Parameters

macroDef

holds the String containing parts 2-5 of a complete macro definition.

Returns

QString holding the complete G-Key macro definition (parts 1-5)

Definition at line 504 of file keyaction.cpp.

Referenced by RebindWidget::applyChanges().

                                               {
    return QString ("$macro:%1").arg(macroDef);
}

Here is the caller graph for this function:

QString KeyAction::macroContent ( ) const

inline

Returns

QString macroContent

Definition at line 86 of file keyaction.h.

References _value, and isValidMacro().

Referenced by RebindWidget::setSelection(), and KbBind::update().

                                        {
        // return isValidMacro() ? _value.split(":")[1].replace(QRegExp("=\\d+"), "") : ""; ///< Is used if we have ckb without delay handling
        return isValidMacro() ? _value.split(":")[1] : "";
    }

Here is the call graph for this function:

Here is the caller graph for this function:

void KeyAction::macroDisplay

(

)

KeyAction::macroDisplay is just for debugging. It shows the content of the key action and some other info.

General Info on KeyAction::_value for macros: That string consists of 4 elements, all delimited by ":".

1. Macro command indicator "$macro:"
2. Macro Key Definition (coming from pteMacroBox): This sequence will program the keyboard and is hardly readable
3. Readable Macro String: This is displayed in pteMacroText
4. Readable Macro Comment:This is displayed in pteMacroComment
5. completely unreadable original macro information with timing values

Definition at line 437 of file keyaction.cpp.

References _value, isMacro(), and isValidMacro().

Referenced by RebindWidget::setSelection().

                             {
    qDebug() << "isMacro returns" << (isMacro() ? "true" : "false");
    qDebug() << "isValidMacro returns" << (isValidMacro() ? "true" : "false");
    QStringList ret =_value.split(":");
    qDebug() << "Macro definition conains" << ret.count() << "elements";
    qDebug() << "Macro definition is" << _value;
}

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::macroFullLine ( ) const

inline

Returns

QString All 5 parts are returned in one QString. If no definition exists, return ""

Definition at line 43 of file keyaction.h.

References _value, and isMacro().

                                         {
        return isMacro() ? _value.right(_value.length()-1) : "";
    }

Here is the call graph for this function:

QStringList KeyAction::macroLine ( ) const

inline

Returns

QStringList returns the Macro Key Definition, Readble Macro String, Readable Macro Comment and the original timing information (if it exists as a 5th part) as QStringList.

Definition at line 73 of file keyaction.h.

References _value, and isValidMacro().

Referenced by RebindWidget::setSelection().

                                         {
        if (isValidMacro()) {
            QStringList ret =_value.split(":");
            ret.removeFirst();
            return ret;
        } else return QStringList();
    }

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::macroTiming ( ) const

inline

Returns

QString macroTiming

Definition at line 98 of file keyaction.h.

References _value, and isValidMacro().

Referenced by RebindWidget::setSelection().

                                       {
        if (isValidMacro()) {
            QStringList rval = _value.split(":");
            return (rval.length() == 4)? rval[1] : rval[4];
        }
        return QString("");
    }

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::modeAction ( int  mode )

static

Definition at line 149 of file keyaction.cpp.

Referenced by RebindWidget::applyChanges().

                                     {
    return QString("$mode:%1").arg(mode);
}

Here is the caller graph for this function:

static QString KeyAction::noAction ( )

inlinestatic

Definition at line 25 of file keyaction.h.

{ return ""; }

KeyAction::operator QString ( ) const

inline

Definition at line 20 of file keyaction.h.

References _value.

{ return _value; }

void KeyAction::operator= ( const KeyAction &  rhs )

inlineprivate

Definition at line 185 of file keyaction.h.

{}

QString KeyAction::programAction ( const QString &  onPress, const QString &  onRelease, int  stop  )

static

Definition at line 168 of file keyaction.cpp.

Referenced by RebindWidget::applyChanges().

                                                                                          {
    // URL-encode the commands and place them in the string (":" and "+" are both replaced, so they won't interfere)
    return "$program:" + QString::fromUtf8(QUrl::toPercentEncoding(onPress.trimmed())) + "+" + QString::fromUtf8(QUrl::toPercentEncoding(onRelease.trimmed())) + QString("+%1").arg(stop);
}

Here is the caller graph for this function:

int KeyAction::programInfo	(	QString &	onPress,
		QString &	onRelease
	)		const

Definition at line 190 of file keyaction.cpp.

References _value, and isProgram().

Referenced by keyEvent(), and RebindWidget::setSelection().

                                                                     {
    if(!isProgram())
        return 0;
    QString param = _value.mid(9);
    QStringList programs = param.split("+");
    if(programs.length() != 3)
        return 0;
    onPress = QUrl::fromPercentEncoding(programs[0].toUtf8());
    onRelease = QUrl::fromPercentEncoding(programs[1].toUtf8());
    return programs[2].toInt();
}

Here is the call graph for this function:

Here is the caller graph for this function:

QString KeyAction::specialInfo

(

int &

parameter

)

const

Definition at line 180 of file keyaction.cpp.

References _value.

Referenced by RebindWidget::setSelection().

                                                   {
    QStringList list = _value.split(":");
    if(list.length() < 2){
        parameter = INT_MIN;
        return "";
    }
    parameter = list[1].toInt();
    return list[0].replace("$", "");
}

Here is the caller graph for this function:

KeyAction::Type KeyAction::type

(

)

const

Definition at line 14 of file keyaction.cpp.

References _value, NORMAL, SPECIAL, and UNBOUND.

Referenced by isNormal(), isSpecial(), isUnbound(), KbBindWidget::on_copyButton_clicked(), and KbBindWidget::on_resetButton_clicked().

                                    {
    if(_value.isEmpty())
        return UNBOUND;
    if(_value.at(0) == '$')
        return SPECIAL;
    return NORMAL;
}

Here is the caller graph for this function:

QString KeyAction::value ( ) const

inline

Definition at line 19 of file keyaction.h.

References _value.

Referenced by KbBind::action(), KbBind::KbBind(), KbBind::save(), and KbBind::update().

{ return _value; }

Here is the caller graph for this function:

Field Documentation

QString KeyAction::_value

private

Definition at line 188 of file keyaction.h.

Referenced by animInfo(), dpiInfo(), driverName(), friendlyName(), isAnim(), isDPI(), isMacro(), isMedia(), isMouse(), isProgram(), isValidMacro(), keyEvent(), macroContent(), macroDisplay(), macroFullLine(), macroLine(), macroTiming(), operator QString(), programInfo(), specialInfo(), type(), and value().

const int KeyAction::DPI_CUSTOM = 6

static

Definition at line 127 of file keyaction.h.

Referenced by dpiAction(), dpiInfo(), friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::DPI_DOWN = -1

static

Definition at line 126 of file keyaction.h.

Referenced by friendlyName(), and keyEvent().

const int KeyAction::DPI_SNIPER = 0

static

Definition at line 127 of file keyaction.h.

Referenced by friendlyName(), and keyEvent().

const int KeyAction::DPI_UP = -2

static

Definition at line 126 of file keyaction.h.

Referenced by friendlyName(), and keyEvent().

const int KeyAction::LIGHT_DOWN = 1

static

Definition at line 130 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::LIGHT_DOWN_WRAP = 3

static

Definition at line 131 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::LIGHT_UP = 0

static

Definition at line 130 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::LIGHT_UP_WRAP = 2

static

Definition at line 131 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::LOCK_OFF = 2

static

Definition at line 134 of file keyaction.h.

Referenced by friendlyName(), and keyEvent().

const int KeyAction::LOCK_ON = 1

static

Definition at line 134 of file keyaction.h.

Referenced by friendlyName(), and keyEvent().

const int KeyAction::LOCK_TOGGLE = 0

static

Definition at line 134 of file keyaction.h.

Referenced by friendlyName(), and keyEvent().

const int KeyAction::MODE_NEXT = -1

static

Definition at line 122 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::MODE_NEXT_WRAP = -3

static

Definition at line 123 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::MODE_PREV = -2

static

Definition at line 122 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::MODE_PREV_WRAP = -4

static

Definition at line 123 of file keyaction.h.

Referenced by friendlyName(), keyEvent(), and RebindWidget::setSelection().

QProcess* KeyAction::preProgram

private

Definition at line 191 of file keyaction.h.

Referenced by keyEvent(), and ~KeyAction().

const int KeyAction::PROGRAM_PR_INDEF = 0x00

static

Definition at line 137 of file keyaction.h.

const int KeyAction::PROGRAM_PR_KPSTOP = 0x02

static

Definition at line 137 of file keyaction.h.

Referenced by keyEvent().

const int KeyAction::PROGRAM_PR_KRSTOP = 0x01

static

Definition at line 137 of file keyaction.h.

Referenced by keyEvent().

const int KeyAction::PROGRAM_PR_MULTI = 0x04

static

Definition at line 137 of file keyaction.h.

Referenced by RebindWidget::applyChanges(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::PROGRAM_RE_INDEF = 0x00

static

Definition at line 138 of file keyaction.h.

Referenced by RebindWidget::applyChanges(), and RebindWidget::setSelection().

const int KeyAction::PROGRAM_RE_KPSTOP = 0x20

static

Definition at line 138 of file keyaction.h.

Referenced by RebindWidget::applyChanges(), keyEvent(), and RebindWidget::setSelection().

const int KeyAction::PROGRAM_RE_MULTI = 0x40

static

Definition at line 138 of file keyaction.h.

Referenced by RebindWidget::applyChanges(), keyEvent(), and RebindWidget::setSelection().

QProcess* KeyAction::relProgram

private

Definition at line 192 of file keyaction.h.

Referenced by keyEvent(), and ~KeyAction().

quint64 KeyAction::sniperValue

private

Definition at line 195 of file keyaction.h.

Referenced by keyEvent().

---

The documentation for this class was generated from the following files:

• src/ckb/keyaction.h
• src/ckb/keyaction.cpp
